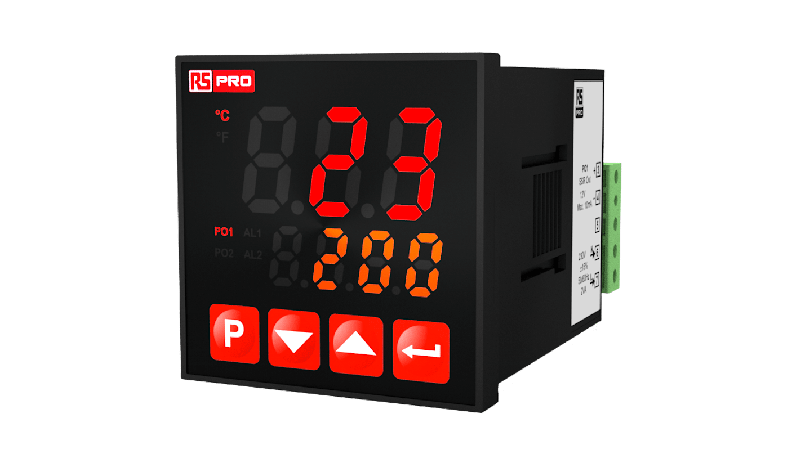

222-8113 RS PRO Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 3 Output Relay, SSR, 100 → 240 V Supply

RS PRO PID Temperature Controllers_x000D_ Introducing a range of high-quality PID temperature control units from the trusted brand RS PRO. These controllers essentially use a control loop feedback that ensures the output required is delivered. By setting the controller you can keep the output constant based on the feedback from a temperature sensor._x000D_ Upon inspection, they are simple to set up, easy to use, and accurately control the temperatures of various equipment. Our PID temperature control units are standalone devices typically found in automated processes._x000D_ Features and Benefits_x000D_ 3 Digits process (PV) and 4 Digits set (SV) display_x000D_ Programmable ON/OFF, P, PI, PD, and PID control forms_x000D_ Adaptation of PID Coefficients to the system with self-tune and auto-tune_x000D_ Programmable heating or cooling functions for control output_x000D_ Selectable alarm functions for alarm output_x000D_ Dimensions: 48 x 48 mm._x000D_ Specification_x000D_ Process Input: TC, RTD_x000D_ Thermocouple (TC): J, K, R, S, T, and L(IEC584.1) (ITS90)_x000D_ Thermo-resistance(RTD): Cu-50 and PT-100 (IEC751) (ITS90)_x000D_ Operating Temperature: 0 °C to +50 °C_x000D_ Humidity: 90 % max. (none condensing)_x000D_ Protection Class: IP65 at the front, IP20 at rear_x000D_ Supply Voltage: 24 V or 100 V to 240 V ac (-%15, +%10) 50/60Hz_x000D_ Alarm Output: Relay (5A@250V at resistive load)_x000D_ RS PRO PID Temperature Control Unit Variants - 100 V to 240 V ac_x000D_ Process O/P: SSR Driver Output (Maximum 10mA, Max. 12V) = RS stock no: 222-8113_x000D_ Process O/P: Relay (5A@250V at resistive load or SSR Driver Output (Maximum 10mA, Max. 12V) = RS stock no: 222-8114_x000D_ RS PRO PID Temperature Control Unit Variant -24V_x000D_ Process O/P: Relay (5A@250V at resistive load or SSR Driver Output (Maximum 10mA, Max. 12V) = RS stock no: 222-8116_x000D_ Applications_x000D_ Automation & Control_x000D_ Manufacturing_x000D_ Industrial Control_x000D_ FAQs_x000D_ What does PID mean?_x000D_ PID means Proportional Integral Derivative_x000D_ Approvals_x000D_ CE
