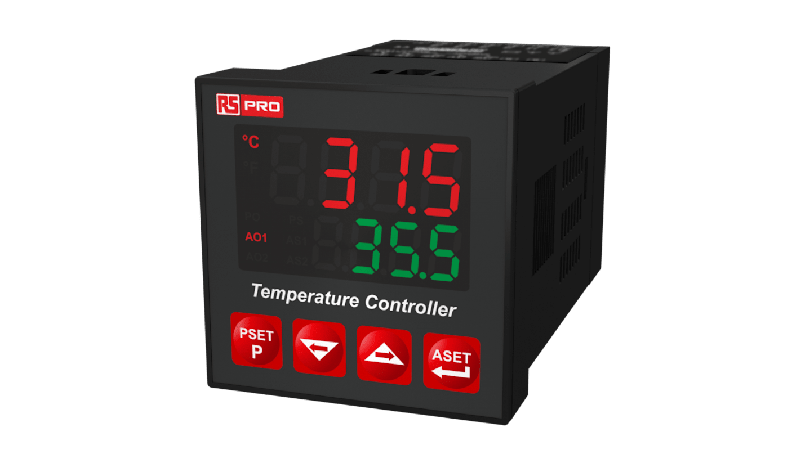

222-8142 RS PRO Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 3 Output Relay, SSR, 24 V Supply Voltage ON/OFF, PID

RS PRO Digital Temperature Controllers - ESM 4420 Series_x000D_ Introducing a range of high-quality digital temperature control units from the trusted brand RS PRO. These universal input temperature controllers are designed to control and measure temperature values. Upon inspection, the units are sturdy, simple to set up, easy to use, and packed with features. Our digital temperature controllers are available with a choice in supply voltage and power, all operating with a high degree of accuracy._x000D_ Also known as_x000D_ Bang-Bang Controllers_x000D_ Features and Benefits_x000D_ ESM 4420 Series_x000D_ 4 digits process(PV) and 4 digits process set value(SV) display_x000D_ Universal process input (TC, RTD)_x000D_ Configurable ON/OFF, P, PI, PD and PID control forms_x000D_ Adaptation of PID Coefficients to the system with Self-Tune operation (Step Response Tuning)_x000D_ Programmable Heating or Cooling Functions for Control Output_x000D_ Alarm Functions for Alarm Output_x000D_ Specification_x000D_ Switching current: 5 A_x000D_ Accuracy: 0.25% at Thermocouple, resistance thermometer_x000D_ Ambient temperature: 0°C to +50°C_x000D_ Storage temperature: -40°C to +85°C_x000D_ Protection Class: NEMA 4X (IP65 at front, IP20 at rear)_x000D_ Dimensions: 48 mm x 48 mm_x000D_ Input_x000D_ Process Inputs: Universal input TC, RTD_x000D_ Thermocouple input types: Selectable by parameters J, K, R, S, T (IEC584.1) (ITS90)_x000D_ Thermo-resistance input type: PT 100 (IEC751) (ITS90)_x000D_ Output_x000D_ Process Output: Relay (5A@250Vac. at resistive load) and SSR Driver Output: (Maximum 20mA@12Vdc)_x000D_ Alarm Output: Relay (5A@250Vac.resistive load)_x000D_ RS PRO ESM 4420 Series Variants_x000D_ 24 V, RS stock no: 222-8142_x000D_ 100 to 240 V, RS stock no: 222-8141_x000D_ 115 V, RS stock no: 222-8144_x000D_ 230 V, RS stock no: 222-8145_x000D_ Application_x000D_ Textiles_x000D_ Automotive_x000D_ Machine Production_x000D_ Approvals_x000D_ EAC, CE
