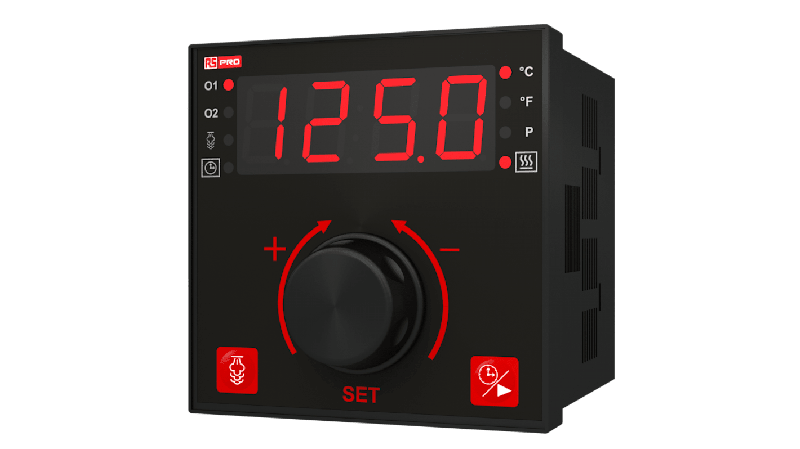

222-8157 RS PRO Panel Mount On/Off Temperature Controller, 96 x 96mm 3 Input, 3 Output Relay, SSR, 100 → 240 V Supply

RS PRO Cooking Controller - ESM-9445_x000D_ Introducing the RS PRO digital cooking controller. This digital device is the ideal temperature control solution for applications that require a specific temperature to be maintained. The RS PRO ESM-9945 is packed with features such as adjustable process offset value, 4 digits display and an adaptation of PID coefficients to the system by auto-tune or self-tune with voiced warning via internal buzzer._x000D_ Features and Benefits_x000D_ 4 digits display_x000D_ Adjustable Process Offset Value_x000D_ Programmable ON/OFF, P, PI, PD ve PID control types_x000D_ Adaptation of PID coefficients to the system by Auto-Tune/Self-Tune_x000D_ Working time selection in minutes or seconds_x000D_ Voiced warning via internal buzzer_x000D_ Cover switch input_x000D_ Steam output_x000D_ Dimensions: 96 mm x 96 mm_x000D_ Environmental Rating and Physical Specification_x000D_ Supply Voltage: 100 to 240V ac 50/60Hz_x000D_ Operating Temperature: 0 °C to +50 °C_x000D_ Humidity: 90 % max. (None condensing)_x000D_ Protection Class: IP65 at front, IP20 at rear_x000D_ Input_x000D_ J type Thermocouple Input, J type, K type, R type, S type_x000D_ 2 or 3 wire PT 100 Input_x000D_ Output_x000D_ Temperature Control Output: Relay (7A@250V at resistive load) or optional SSR Driver Output (Maximum 10mA, 17V)_x000D_ Time Output: Relay (5A@250V at resistive load) or optional SSR Driver Output (Maximum 10mA, 17V)_x000D_ Steam Output: Relay (5A@250V at resistive load) or optional SSR Driver Output (Maximum 10mA, 17V)_x000D_ Applications_x000D_ Bakery Applications_x000D_ Fermentation Cabinets_x000D_ Ceramics and Glass ovens_x000D_ Industrial fryer_x000D_ Incubators_x000D_ Approvals_x000D_ AEC, CE
