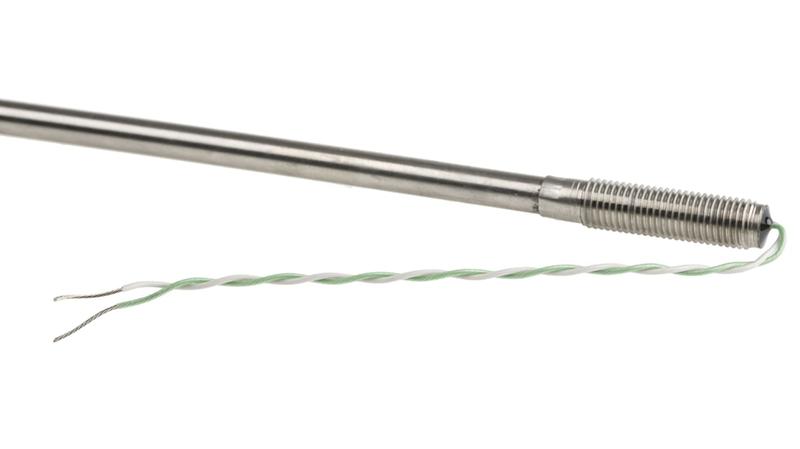

228-7502 RS PRO Type K Thermocouple 500mm Length, 6mm Diameter → +1100°C

RS Pro IEC Mineral Insulated Type K Thermocouple with Threaded Pot and Tails_x000D_ From RS Pro a range of type K thermocouple temperature sensors or probes that conform to IEC 584 specifications. These thermocouple temperature probes have durable construction with a 310 stainless steel mineral insulated flexible probe sheath that can be bent and formed to suit a wide range of applications. The thermocouple has a single element insulated hot junction for a reduction in electrical interference and a M8 x 1.00 mm fine pitch threaded pot seal with a temperature rating of 200°C._x000D_ How does a Thermocouple Work?_x000D_ A thermocouple is a sensor used to measure temperature in a range of different processes and consists of two wire legs made from different metals joined together at their two ends to form two junctions. The hot, or measuring junction is connected to the body whose temperature is going to be measured. The cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables. This process is also known as the Seebeck Effect_x000D_ What is an Insulated Junction?_x000D_ An insulated or ungrounded junction is where the thermocouple wires are welded together and fully covered by but insulated from the outer protective sheath, often by the use of mineral insulation. The advantage of this is that there is a reduction in electrical interference and a stable reading_x000D_ What is Mineral Insulation?_x000D_ Mineral insulation is used to insulate the thermocouple wires from one another and from the metal probe sheath that surrounds them. The sheath is filled with a highly compacted magnesium oxide powder that prevents the conductors from making contact with one another other than at the fixed junction. The high density of the mineral powder enables the thermocouple to have a rapid response as it promotes a fast heat transfer between the conductor and the sheath. Mineral insulation also helps to protect the thermocouple wire from environmental damage including corrosion, prevents electrical interference and allows the cable to be flexible whilst maintaining its mechanical strength_x000D_ Key Features and Benefits_x000D_ • Insulated hot junction for reduced electrical interference_x000D_ • Mineral insulation for flexibility, durability and high performance_x000D_ • Conforms to IEC 584 standards_x000D_ • Flexible, can be bent into shape for easy installation_x000D_ • 310 stainless steel sheath for resistance to corrosion and oxidation_x000D_ • M8 x 1.0 mm fine pitch threaded pot seal_x000D_ • Wide temperature range of -100 to +1100°C_x000D_ Applications_x000D_ Type K Thermocouples (Nickel-Chromium / Nickel-Aluminium) are the most common type of thermocouple and are both accurate and flexible with a wide temperature range. Typical applications for these mineral insulated Type-K thermocouple probes include heat exchangers, power stations, brick and cement kilns, heat treatment and annealing furnaces, thermostats, food thermometers, vehicle diagnostics and in laboratories_x000D_ Accessories_x000D_ M8 lock nuts are available, please see stock numbers 762-1162 and 762-1187_x000D_
