233-7808 RS PRO Digital Voltmeter DC, LED Display 5-Digits 1%

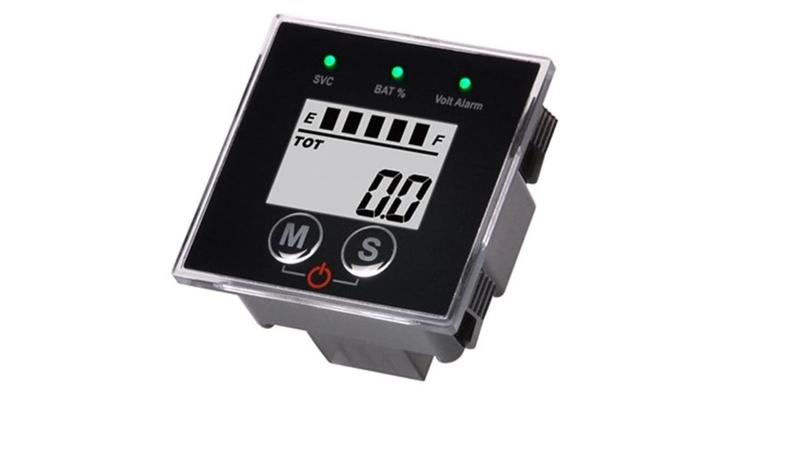

RS PRO Battery Fuel-Gauge Digital Voltmeter_x000D_ RS PRO is proud to introduce this high-quality battery fuel gauge designed for measuring the remaining power in a battery by monitoring the voltage change of the device. It also has a multi-function programmable, resettable hour meter to monitor maintenance time or hire period. An LED indicates ’time-up’ and a 5V output can be used for ’time-up’ signalling. It is suitable for most lead-acid, GEL, LiFE-PO4, AGM batteries and you can also choose different voltage types._x000D_ The 5 bar LED screen shows the battery level, the resolution: 20% for each LED segment. The battery indicator provides 9 selectable types of discharge curves, programmable high and low voltage warnings, three-level backlight settings, user-off, and has an IP65 surface waterproof design to adapt to the harsh external environment._x000D_ Features and Benefits_x000D_ Battery ’fuel gauge’ with Hours Run Counter_x000D_ Suits most Battery types_x000D_ Volt: 12,24,26,48 Vdc_x000D_ Maintenance reminder visual alarm + 5V output signal_x000D_ Backlit Display_x000D_ IP65 front plate_x000D_ Mechanical Specification_x000D_ Dimensions: 50 mm x 50 mm bezel x 32 mm deep (Max)_x000D_ Panel cut-out: 45 mm x 45 mm_x000D_ Panel fixing Integrated sprung ratchet clamps_x000D_ Display Window size: 40.8 mm x 18.8 mm_x000D_ Weight: 52 gm_x000D_ Connections Supplied complete with 8-pin connecter with crimp terminals_x000D_ Electrical Specification_x000D_ Battery Voltage measurement: 12 / 24 / 38 /48 Vdc_x000D_ Battery types: Lead-Acid, GEL, LiFE-PO4, AGM_x000D_ Display Accuracy Voltage: 0.01V. Percentage +/- 1%_x000D_ Hour Meter Range: 0-99999 Hours_x000D_ Hour meter Accuracy: 0.1 Hour/1 Hour_x000D_ Maintenance Period Range: 0 – 2000 Hours_x000D_ Display Backlight: ON/OFF/AUTO_x000D_ Maintenance Time-Out Signal: 5.0V/50mA_x000D_ Applications_x000D_ Battery fuel Gauge & Digital maintenance hour meter_x000D_ Lawnmower_x000D_ Motorcycle_x000D_ Tractor_x000D_ Pressure washers_x000D_ Fork-Lift Trucks_x000D_ Golf-Carts and Trollies
