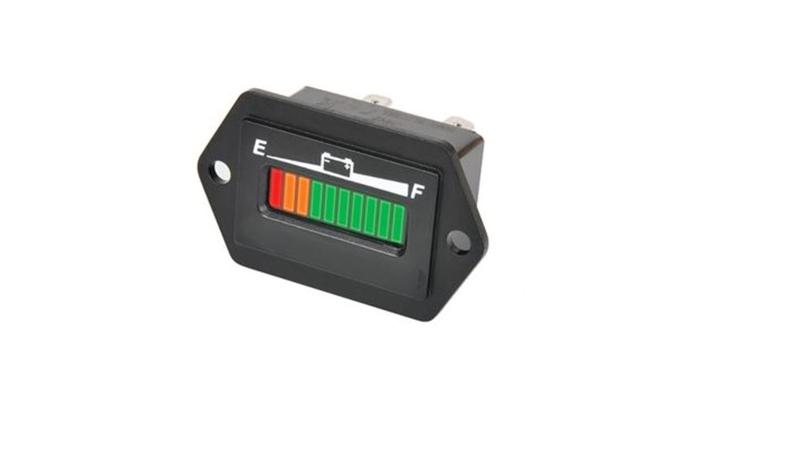

233-7810 RS PRO Digital Voltmeter DC, LED Display 1%

RS PRO Battery Fuel Gauges with Alarm Output_x000D_ RS PRO is proud to offer a series of battery fuel gauges with alarm output. Each battery meter gauge measures the current power available within the battery by monitoring the change in voltage of the device. Our gauge instruments are commonly used with lead-acid batteries and have a 10 bar multi-colour LED display that indicates battery levels._x000D_ Key Features_x000D_ A 5V/5mA voltage output can be used to activate a suitable audible or visual warning or remove the alarm. These voltmeters have a traffic light indicator status, 1 Red, 2 Yellow, and 7 Green. The display can be set to show only the LED bar corresponding to the current battery state or all LED bars up to the current battery state. An IP65 surface waterproof design is included to adapt to the harsh external environment._x000D_ Features and Benefits_x000D_ Battery ’fuel gauge’_x000D_ Accurate Measuring_x000D_ Battery-Low output signal, 5V/5mA_x000D_ Volts: 12 / 24Vdc_x000D_ Multi-Colour Segment Display_x000D_ IP65_x000D_ Single-Segment or Multi-Segment display mode_x000D_ Single Segment Display_x000D_ During application, if the ’C’ pin is not connected the LED light bar displays the current-voltage position in a single display._x000D_ Multi-Segment Display_x000D_ Connect the ’C’ pin to a positive pole of the power supply, the LED light bar displays the current-voltage position in a multiscreen display._x000D_ Mechanical Specification_x000D_ Dimensions: 53 mm x 32 mm bezel x 27.1 mm deep (Max)_x000D_ Panel cut-out: 37 mm x 25 mm_x000D_ Panel fixing: Through panel M2 nut and bolt (Supplied)_x000D_ Display Window size: 25.5 mm x 7.6 mm_x000D_ Weight: 36 gm_x000D_ Connections: Fast-on terminals, Insulated spades supplied_x000D_ Electrical Specification_x000D_ Battery Voltage measurement: 12 / 24 Vdc_x000D_ Battery types: Lead-Acid_x000D_ Display Accuracy: Voltage: 0.01V. Percentage +/- 1%_x000D_ Maintenance Time-Out Signal: 5.0V/50mA_x000D_ RS PRO Battery Fuel Gauge Voltmeter Variants_x000D_ RL-BI026, Triangular mounting style, RS stock no: 233-7810_x000D_ RL-BI027, Rectangular mounting style: RS stock no: 233-7811_x000D_ Applications_x000D_ Battery Powered Equipment_x000D_ Lawnmower_x000D_ Motorcycle_x000D_ Pressure washers_x000D_ Fork-Lift Trucks_x000D_ Golf-Carts and Trollies
