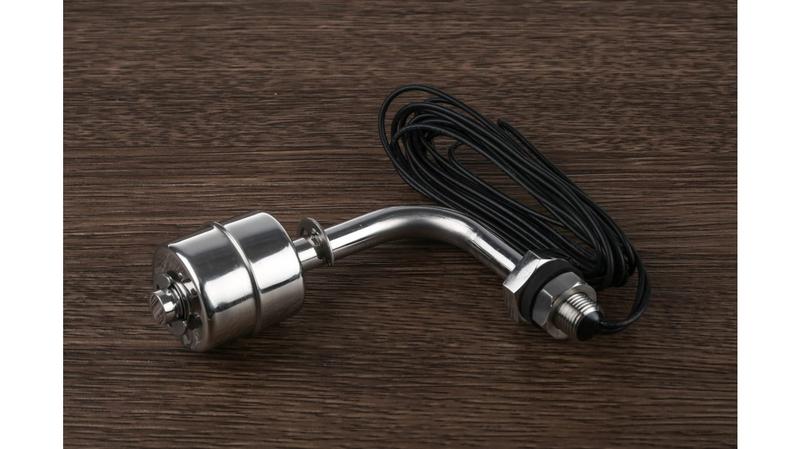

235-6204 RS PRO Horizontal Stainless Steel Float Switch, Float, 300mm Cable, Direct Load, 300V ac Max, 300V dc Max

RS PRO Horizontal Float Switch, Stainless Steel, Direct Load, Float, 300 mm, 300 V_x000D_ This RS PRO float switch detects the rise or fall of liquid in tanks or other containers. It will trigger a pump, alarm or some other peripheral device when it reaches a certain level._x000D_ The switch mounts horizontally and the unit's right-angled stem makes it suitable for shallower environments. This also means you can mount it at the top or bottom of your tank. With a direct-load, single-pole, single-throw (SPST) output, there's one input and output terminal – useful for simple on-off switches. It features a robust 300 mm cross-linked polyurethane (XLPE) cable and has an internal wire size of 22 AWG._x000D_ A durable silicone washer prevents the float from leaking and it has a corrosion-resistant stainless steel body. The device will operate safely from -10°C to +120°C. It can work with AC and DC voltage up to 300 V, current up to 500 mA and pressure of 10 bar Kg/cm²._x000D_ Features and Benefits_x000D_ • Horizontal, internal tank mount (top/bottom)_x000D_ • XLPE cable of 300 mm for durability and heat resistance_x000D_ • Internal wire size of 22 AWG_x000D_ • Contact resistance of 200 mΩ_x000D_ • Minimum operating temperature of -10°C_x000D_ • Maximum operating temperature of +120°C_x000D_ • Voltage rating of 300 V_x000D_ • Maximum current of 500 mA_x000D_ • Maximum pressure of 10 bar Kg/cm²_x000D_ • Direct load switch_x000D_ • Stainless steel body_x000D_ • Cable length of 300 mm_x000D_ • Warning: don't submerge cable entry point. Fit the switch through the wall of the tank with the cable outside_x000D_ RS PRO_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_ they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
