PTFE Insulated Extension Cable_x000D_
PTFE insulated & colour coded to BS4937 Pt30_x000D_
Stranded flexible construction_x000D_
Temperature rating -75 to +250°C_x000D_
PTFE insulated flat pair cable_x000D_
Single pair of PTFE insulated conductors, laid flat with PTFE jacket_x000D_
Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids_x000D_
Suitable for steam & pressure applications, autoclaves, sterilisers etc._x000D_
Thermocouple types K, J, & T with 7/0.2mm stranded conductors_x000D_
1/0.3mm solid conductor option available for type T_x000D_
10, 25 & 50 metre reel lengths_x000D_
Tolerance Class 1 for optimum accuracy_x000D_
Insulation rating -75°C to 260°C_x000D_
Colour code (cores & jacket) to IEC-584-3_x000D_
Standards_x000D_
BS4937 Part 30 1993 which conforms to IEC 584-3_x000D_

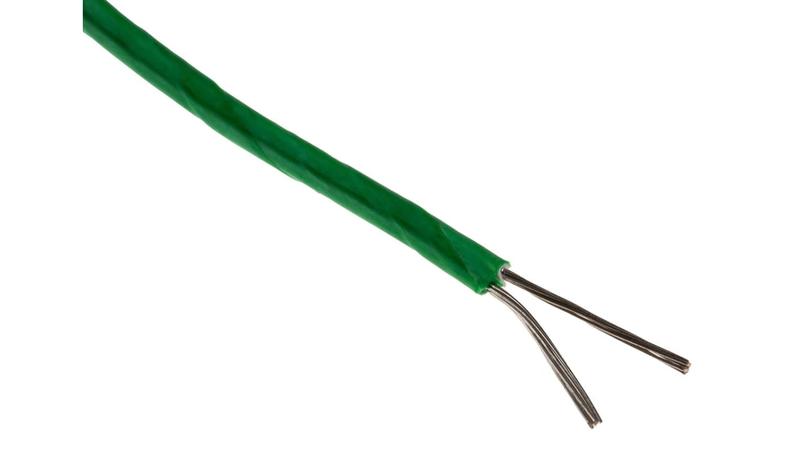

Extension Cable Type K, -75°C → +250°C 2 Core Unscreened PTFE Sheath 25 m_x000D_
Need a thermocouple wire for a temperature sensor in an extreme environment? This Type K extension cable from the RS PRO range will operate up to temperatures of +250˚C without melting and down to -75˚C without cracking. Sheathed in ultra-durable PTFE which offers excellent resistance to oils, acids and fuels, it's suitable for use in steam and pressure applications, autoclaves and sterilisers._x000D_
Each of the seven-stranded conductors has a cross-sectional area of 0.2 mm. You can rest assured that this cable is certified as safe, as it conforms to the IEC-584-3 standard for a tolerance class I cable. It's available in lengths of 25 m._x000D_
As it's been strenuously tested, you'll find this product won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It's also compliant with RoHS on levels of hazardous substances, so doesn't contain harmful amounts of materials like mercury or lead._x000D_
Features and Benefits_x000D_
Type K flat unscreened thermocouple extension cable for use in temperature-sensing applications_x000D_
Durable PTFE outer jacket withstands extreme temperatures, oils, acids and fuels_x000D_
Suitable for steam and pressure applications, autoclaves and sterilisers_x000D_
Minimum operating temperature of -75°C without cracking_x000D_
Maximum operating temperature of + 250°C without melting_x000D_
Flat pair of 7-stranded conductors_x000D_
Core strand cross-sectional area of 0.2 mm_x000D_
Length of 25 m_x000D_
Conforms to BS4937 Pt30 standard as a tolerance class I thermocouple cable_x000D_
Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)_x000D_
RS PRO_x000D_
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too._x000D_
Standards_x000D_
BS 4937 Pt 30 1993
