238-9642 RS PRO Brushed Geared, 2.51 W, 3 V, 5 mNm, 2 → 3700 rpm, 2mm Shaft Diameter

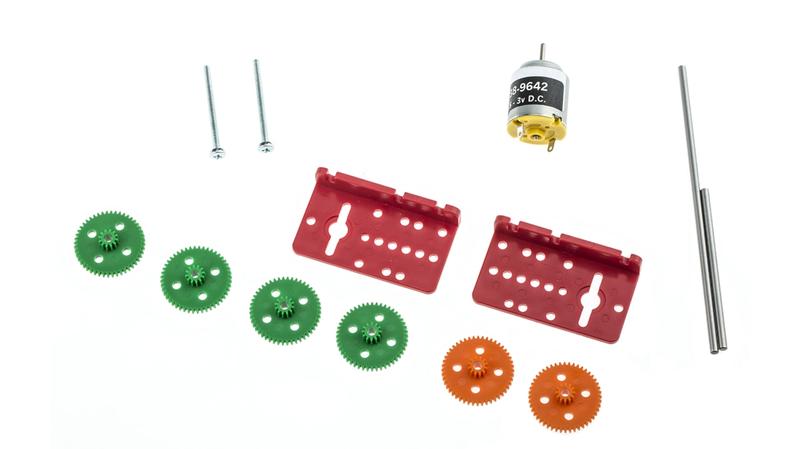

RS Pro 1.5 to 3V Model DC Motor with Multi-Ratio Gears_x000D_ From RS Pro, this unassembled 1.5 to 3 V DC motor and gearbox combination is ideal for model and robotics purposes. With clearly visible and colour-coded gearing set in a robust frame, the model is useful for educational demonstration as well as practical application._x000D_ The unassembled RS Pro Model Motors are supplied with 4:1 ratio pinion gears which can be assembled to produce ratios from 4:1 to 4096:1, depending on how many gears are fitted._x000D_ With an iron core construction, the DC motor has a spur gearbox for consistent high output torque. This 58 mm geared motor is suitable for most low voltage applications, and provides a n rpm no load speed according to the supply voltage._x000D_ Features and Benefits_x000D_ • Build-it-yourself design_x000D_ • Iron core_x000D_ • 52mm Length_x000D_ • Spur gearhead_x000D_ • The final output speed is determined by the motor supply voltage._x000D_ Applications_x000D_ DC geared motors are highly versatile, and are used in many appliances and technologies. These RS Pro model motors are ideal for both the hobbyist and for use in educational demonstrations and experiments._x000D_ • Teaching the principles of mechanics_x000D_ • Models_x000D_ • Robotics_x000D_ • Fans_x000D_ What's the Difference Between Brushed and Brushless DC Motors?_x000D_ Electric motors that use a brush to deliver current to the motor windings have a simpler construction than their brushless equivalents, and are therefore usually lower in cost. They are also able to be wired directly to a DC power source, and have no need for an encoder or drive, which results in more simplified wiring options._x000D_ Unfortunately, wear and tear on the brush element means a shorter service life and less efficiency. They are also typically noisier than brushless DC motors._x000D_ Why RS Pro?_x000D_ RS Pro strives to provide you with the choice and reliability you need in your component purchasing. From designing prototypes to finding reliable maintenance solutions, RS Pro can furnish you with the parts you need, when you need them._x000D_ Providing high-quality hardware tested by our in-house experts, RS Pro offers you an assurance of quality at competitive prices._x000D_ At every stage of the design and manufacturing process, RS Pro is there to support you_x000D_ RS Pro DC Multi-Ratio Gearboxes
