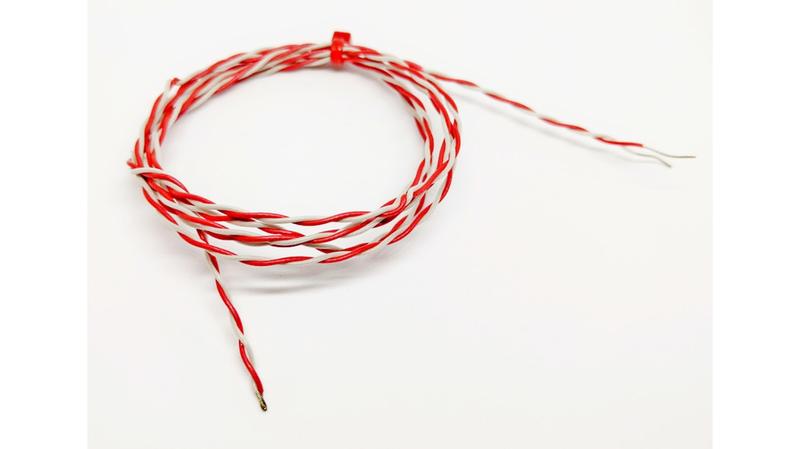

239-4552 RS PRO Type K Thermocouple 5m Length, 7/0.2mm Diameter → +250°C

RS PRO Type K Exposed Welded Tip Thermocouples – Bare Tails_x000D_ When you need the very best in thermocouple wire then choose the RS PRO range of Type K fine wire thermocouples. These bare tail wires are RoHS compliant, durable and PFA insulated. They are available in various core strands, 1/0.2 mm, 1/ 0.3 mm or 7/0.2 mm which is ideal for terminating sensors during temperature mapping and OEM applications._x000D_ How does a Thermocouple Work?_x000D_ A thermocouple is a sensor used to measure temperature in a range of different processes and consists of two wire legs made from different metals joined together at their two ends to form two junctions. The hot, or measuring junction is connected to the body whose temperature is going to be measured. The cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables. This process is also known as the Seebeck Effect._x000D_ What is a Welded Exposed Junction?_x000D_ An exposed junction is where the thermocouple wires are welded together but not surrounded by the outer sheath. The ends of the wire are directly inserted into the process. This means the thermocouple has a high sensitivity and response time. Welded exposed junctions are more prone to corrosion and are recommended for measuring flowing or static non-corrosive gas temperatures._x000D_ Features and Benefits_x000D_ JIS Thermocouple Wire_x000D_ Bare tails_x000D_ Exposed welded junction for fast response_x000D_ Durable PFA insulation for resistance to oils, acids and fluids and good mechanical strength and flexibility_x000D_ Conductor size: 1/0.2 mm, 1/0.3 mm and 7/0.2 mm_x000D_ Lengths: 1 m, 2 m, 5 m and 10 m available_x000D_ Temperature range from -75 to +250°C_x000D_ Applications_x000D_ Test and development_x000D_ Test and measurement_x000D_ Temperature mapping_x000D_ OEM applications
