239-4562 RS PRO Type K Thermocouple 1m Length, 7/0.2mm Diameter → +105°C

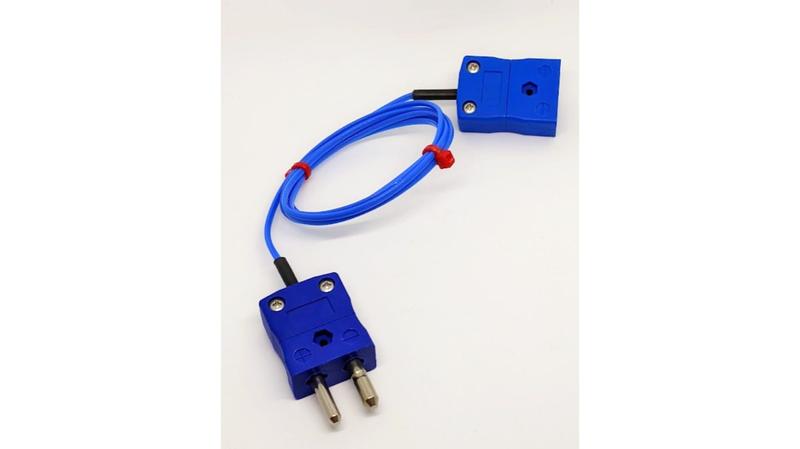

RS PRO Standard Thermocouple Plug & Socket with Insulated Flat Pair Thermocouple Cable_x000D_ From RS PRO, thermocouple connectors consisting of a standard thermocouple plug and thermocouple socket connector. These thermocouple connectors have been terminated together via a flat pair 7/0.2 mm PVC insulated thermocouple cable providing a quick, safe and error-free way of replacing your existing thermocouples._x000D_ The connector housings are made from a rugged thermoplastic which is impact resistant and able to withstand high temperatures of up to 200°C. The terminals on the plug have a flat design and are polarised to ensure an accurate connection when mated with the female socket. The housings of these miniature thermocouple connectors are colour coded in accordance with JIS specification._x000D_ What is a Thermocouple Connector?_x000D_ Thermocouple connectors are an accurate and convenient way of interconnecting your temperature sensing components. Using these connectors allows a chain to be formed from the measuring tip of your temperature sensor to the host computer or meter. It is important that all the components in the chain are made from the same thermocouple material to prevent any alteration or distortion of the original signal. To achieve this, thermocouple connectors have pins made from the same material as the thermocouple they are being used to connect or a compensating material. The connector housing has the thermocouple type clearly printed on it and is also colour coded to allow easy identification. The connector is opened, and the thermocouple wires are simply screwed down into place using two captive screw clamps._x000D_ Feature and Benefits_x000D_ Type K_x000D_ All round general-purpose cable, both waterproof and very flexible_x000D_ Thermocouple terminating with a standard plug & socket_x000D_ Colour coded in accordance with JIS specification_x000D_ Polarised flat pin contacts for an accurate connection_x000D_ Temperature Measurement Range: Cable -10°C to 105°C – Connectors 200°C_x000D_ 7/0.2 mm core strand_x000D_ Polarity and thermocouple type clearly marked on housings_x000D_ PVC Insulation_x000D_ Ideal for general purpose use_x000D_ RoHS Compliant_x000D_ Variants_x000D_ 1 m – RS stock no: 239-4562_x000D_ 2 m – RS stock no: 239-4563_x000D_ 3 m – RS stock no: 239-4561_x000D_ 5 m – RS stock no: 239-4564_x000D_ 10 m – RS stock no: 239-4560_x000D_ Applications_x000D_ These miniature plug and socket connectors are used in any application where thermocouples are installed, extended or replaced. Their robust construction makes these standard thermocouple connectors ideal for use even in the most demanding temperature measurement applications.
