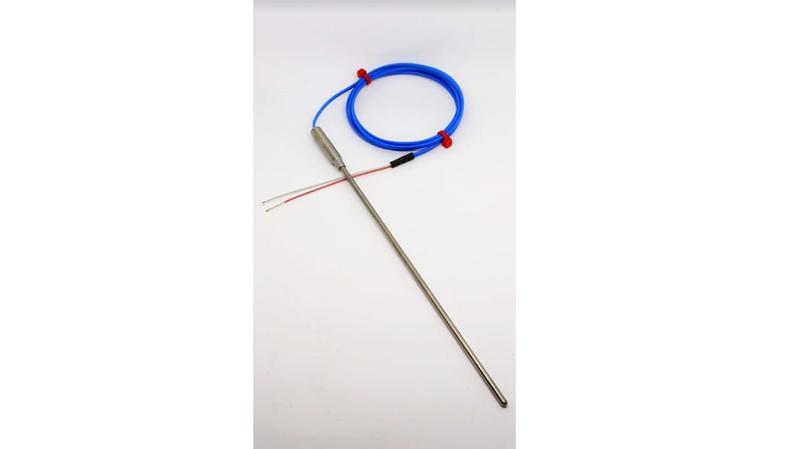

239-4607 RS PRO Type K Thermocouple 150mm Length, 1mm Diameter → +750°C

RS PRO Type K Mineral Insulated Thermocouples with 1 m PFA Flat Pair Cable and Tails_x000D_ RS PRO is proud to introduce a new series of Type K Mineral Insulated Thermocouples. These thermocouple probes have a durable construction and feature a 310-stainless-steel probe sheath. The mineral insulated flexible sheath can be bent and formed as per application, included is a plain pot seal and a 1 m 7/0.2 mm PFA insulated flat pair unterminated cable. The junction insulated sheath offers protection against spurious electrical signals._x000D_ How does a Thermocouple Work?_x000D_ A thermocouple is a sensor used to measure temperature in a range of different processes and consists of two wire legs made from different metals joined together at their two ends to form two junctions. The hot, or measuring junction is connected to the body whose temperature is going to be measured. The cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables. This process is also known as the Seebeck Effect._x000D_ What is an Insulated Junction?_x000D_ An insulated or ungrounded junction is where the thermocouple wires are welded together and fully covered by but insulated from the outer protective sheath, often by the use of mineral insulation. The advantage of this is that there is a reduction in electrical interference and a stable reading._x000D_ What is Mineral Insulation?_x000D_ Mineral insulation is used to insulate the thermocouple wires from one another and from the metal probe sheath that surrounds them. The sheath is filled with a highly compacted magnesium oxide powder that prevents the conductors from contacting one another other than at the fixed junction. The high density of the mineral powder enables the thermocouple to have a rapid response as it promotes a fast heat transfer between the conductor and the sheath. Mineral insulation also helps to protect the thermocouple wire from environmental damage including corrosion, prevents electrical interference and allows the cable to be flexible whilst maintaining its mechanical strength._x000D_ Features and Benefits_x000D_ JIS Thermocouple_x000D_ Durable 310 stainless steel probe sheath for protection against corrosion and oxidation_x000D_ Mineral insulation for flexibility and durability_x000D_ Insulated sheath offers protection against spurious electrical signals_x000D_ 1 m PFA Insulated Flat Pair Cable and Tails - 7/0.2mm_x000D_ Probe_x000D_ Probe Length: 150 mm, 200 mm, and 500 mm available_x000D_ Probe Diameter: 1 mm, 1.5 mm, 3 mm and 6 mm available_x000D_ Maximum Temperature Sensed: +750 °C or +1100 °C_x000D_ Applications_x000D_ Type K Thermocouples are the most common type of thermocouple and are both accurate and flexible with a wide temperature range. Typical applications for these mineral insulated Type-K thermocouple probes include heat exchangers, power stations, brick and cement kilns, heat treatment and annealing furnaces, thermostats, food thermometers, vehicle diagnostics and in laboratories.
