239-8210 RS PRO Input/Output Module, 2 Inputs, 2 Outputs, 24 V, 2NO

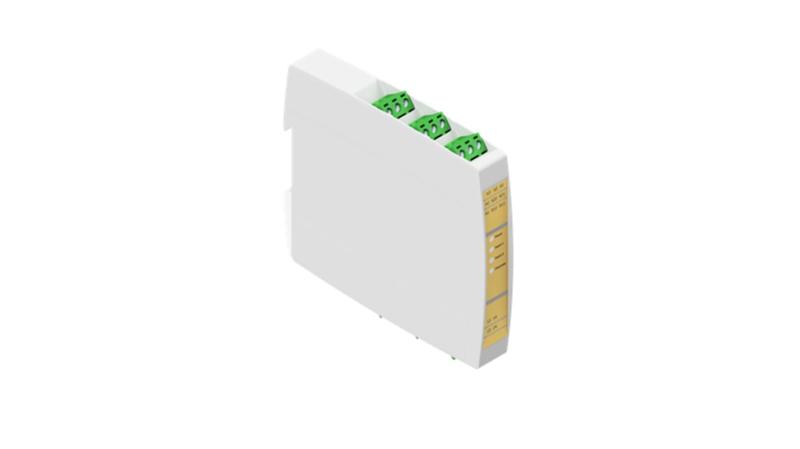

RS PRO Electromechanical Safety Module_x000D_ The RS PRO safety module is the ideal solution to safely monitor and control the operation of two-hand control consoles (type III C according to EN ISO 13851). The device enables safety control outputs only if the two console buttons are activated by the operator simultaneously or with a maximum interval of 500 ms from each button._x000D_ Features and Benefits_x000D_ IIIC category device with Synchronism control according to the requirements of standard EN ISo 13851_x000D_ 2NO safety outputs + 1NC signalling output + 1 PNP auxiliary output (24Vdc/50mA)_x000D_ Two channel configurations useful for safety systems up to PL e (according to EN ISO 13849-1) (secondo EN ISO 13849-1)_x000D_ Specifications_x000D_ Casing Material: Reinforced thermoplastic_x000D_ Connection terminals: Removable screw terminals_x000D_ Security channels: 2_x000D_ Safety exits: 2NO_x000D_ Auxiliary outputs: 1NC + 1PNP_x000D_ Input: 2 x (1NO+1NC)_x000D_ Configuration type: Manual or automatic_x000D_ Electrical Specification_x000D_ Rated operating voltage: 24 V_x000D_ Maximum output current: 6 A_x000D_ EN ISO 1384-9: Certificate_x000D_ ISO 13849-1 Cat: Cat 4_x000D_ ISO 1384-9: Performance level: PLe_x000D_ MTTFD: 422.1 years_x000D_ PFHD: 1.35 E-10_x000D_ DC Avg: 99 %_x000D_ Approvals_x000D_ Declarations CE – UKCA_x000D_ Standards Met IEC 60947-5-1 UL 508
