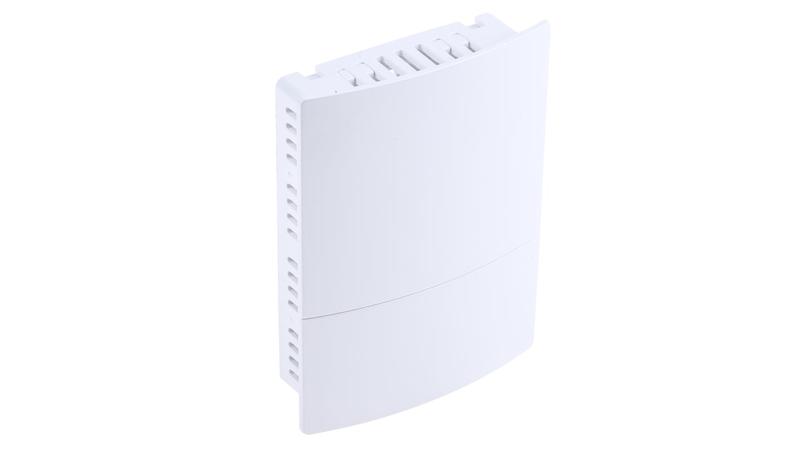

376-1477 RS PRO PT100 RTD Sensor, +60°C Max

Temperature Sensors for Air Conditioning_x000D_ Thermistor and Pt100 type sensors in a variety of packages suitable for use with most air conditioning control systems._x000D_ Sensor Types:_x000D_ Thermistor: direct thermistor (NTC) temperature (10kΩ at 25°C) versions._x000D_ Pt100 sensor: 2 wire sensors with probes providing a linear response and positive temperature coefficient._x000D_ Package Types:_x000D_ Space Air (813-806; 376-1477): a white ventilated unit for interior use, temperature range -10 to +60°C._x000D_ Duct Air (813-862): an IP65 housing with 20mm conduit entry, 150x6mm dia. probe, temperature range -30 to +70°C._x000D_ Outside Air (813-828; 813-878): an IP65 enclosure with a small caps, 20mm conduit entry, temperature range -30 to +70°C._x000D_ Liquid Immersion (813-834; 813-884): an IP65 enclosure with 20mm conduit entry, 150x6mm diameter probe which fits into a pocket (available separately) for a temperature range of -30 to +70°C_x000D_ Pipe-Clamp on (813-840; 813-890): a sensing element located in a lug which is fitted to the pipe via cable tie. IP65 terminal with 2m of cable, maximum temperature 110°C._x000D_ Note_x000D_ The pockets have grub screw probe fixing for easy replacement._x000D_ RS PRO Relative Humidity/Temperature Transmitter_x000D_ Different industries need different solutions to keep up with the evolving world. If humidity and temperature are in play, Humidity/Temperature Transmitter seems to capture both requirements to support many applications. Merging both strengths, the Sensor can meet the specific demands of temperature-sensitive devices._x000D_ Those popular products have their place across everyday life situations, from the apparent objects in our home, such as kettle or toaster to more advance applications including monitoring the temperature in alcohol breathalysers or maintaining temperature for equipment to fabricate medical drugs. Still, the key message is the responsiveness and accuracy of the detection circuit is essential for quality control._x000D_ We are proudly introducing our own branded RS PRO Temperature Sensor for Air Conditioning for use with most air conditioning control systems. The sensing temperature is ranging from – 10°C to + 40ׄ°C providing a reliable operating temperature range for the interior application. The 2-wire Sensor with brass probes accelerates a linear response and positive temperature coefficient._x000D_ The Temperature Sensor is a high specification, micro controlling and reducers of measurement errors with white ventilated ABS unit._x000D_ You do not have to pay a premium price to get a professional quality part as our engineers testified our Transmitter so that you can purchase with full confidence._x000D_ Depending on sensor types and package type requirements, you can check the following options:_x000D_ Sensor Types:_x000D_ Thermistor: direct Thermistor (NTC) temperature (10 kΩ at 25°C) versions_x000D_ PT 100 Sensor: 2 wire sensors with probes providing a linear response and positive temperature coefficient_x000D_ Package Types:_x000D_ Space Air (813-806; 376-1477) a white ventilated unit for interior use, temperature range -10°C to + 60°C_x000D_ Duct Air (813-862) an IP65 housing with 20mm conduit entry, 150x6mm dia. probe, temperature range – 30°C to + 70°C_x000D_ Outside Air (813-828; 813-878) an IP65 enclosure with a small caps, 20mm conduit entry, temperature range -30 to +70°C_x000D_ Liquid Immersion (813-834; 813-884) an IP65 enclosure with 20mm conduit entry, 150x6mm diameter probe which fits into a pocket (available separately) for a temperature range of -30 to +70°C_x000D_ Pipe-Clamp on (813-840; 813-890) a sensing element located in a lug which is fitted to the pipe via a cable tie. IP65 terminal with 2m of cable, maximum temperature 110°C_x000D_ Features and Benefits_x000D_ Suitable for most interior room applications where an air conditioning control system is in place_x000D_ 2-wire Sensor accelerate a linear response and positive temperature coefficient_x000D_ The sensing temperature ranging from – 10°C to + 40ׄ°C_x000D_ White ABS (acrylonitrile butadiene styrene) coverage_x000D_ Robust Temperature Detector providing responsiveness and accuracy_x000D_ When buying interior room Temperature Sensor, you are getting a long-term stability_x000D_ Applications_x000D_ The Temperature Transmitter with a diverse range of industries across multiple sectors makes them desirable in:_x000D_ Cleanroom monitoring_x000D_ HVAC (Heating Ventilation, and Air Conditioning)_x000D_ Ideal for applications where space is at a premium_x000D_ Use with building management systems_x000D_ Home appliances_x000D_ Drug industry_x000D_ Frequently asked questions_x000D_ How long does Humidity/Temperature Sensor last?_x000D_ Depending on how the unit is getting maintain along with the effectiveness of parameters will determine life expectancy. The average estimated life of a Temperature Sensor should last around seven to ten years._x000D_ Why RS PRO?_x000D_ RS Pro is our family brand to go-to and brings you a wide range of high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards._x000D_ We are only giving the RS PRO seal of approval if we're confident of their exceptional quality, which means you can be convinced too._x000D_ Note_x000D_ The pockets have grub screw probe fixing for easy replacement.
