455-4062 RS PRO PT100 RTD Sensor, 6mm Dia, 500mm Long, 4 Wire, G1/2, Class B +450°C Max

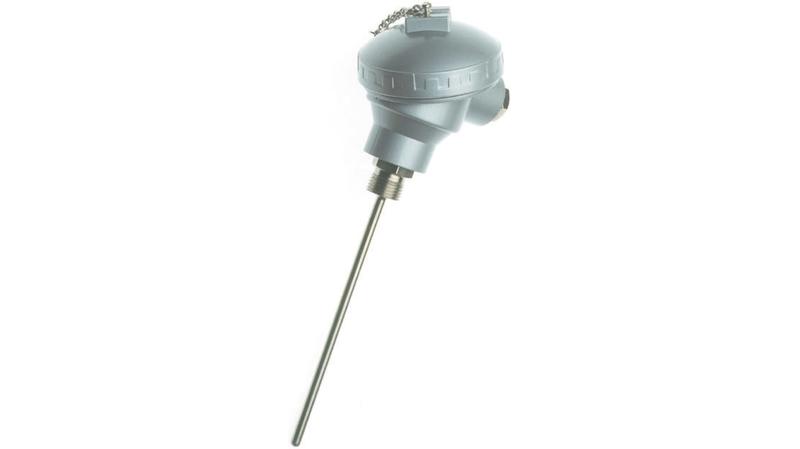

RS Pro Heavy Duty 4 Wire Pt100 PRT Probe with Terminal Head_x000D_ From RS Pro a high-quality heavy-duty Pt100 PRT (Platinum Resistance Thermometer) or RTD (Resistance Temperature Detector) sensing probe with a terminal head. This RTD probe has a robust construction with the sensing element encased in a rigid 6mm diameter 316 stainless steel sheath. The terminals of this Pt100 sensor are enclosed in an aluminium alloy terminal head which protects them against harsh environments. This heavy duty platinum resistance thermometer provides accurate and reliable temperature measurement for a wide range of applications._x000D_ What is an RTD?_x000D_ An RTD is a type of temperature sensor based on the correlation between metals and temperature. As the temperature of a metal increases so does its resistance to the flow of electricity. This resistance can be measured and converted to a temperature reading. In a Pt100 RTD, the ’Pt’ stands for platinum (platinum wire or film) and ’100’ means that the temperature sensor has a resistance of 100 Ohms at 0°C. Platinum is the most reliable metal due to its linear resistance to temperature relationship over a large temperature range._x000D_ What is a Pt100 Probe with Terminal Head?_x000D_ The Pt100 temperature sensor element is mounted inside a metal sheath or probe. This sheath protects the element from being damaged by the surrounding environment when it is inserted into the process to be measured. The probe lead wires are connected to a terminal block which is enclosed in a heavy duty terminal head which protects the connection against harsh environments. The terminal head has a cable entry allowing it to be connected to external measuring equipment and a screw cover to allow access to the connections._x000D_ Features and Benefits_x000D_ • High stability sensing element with a precision output_x000D_ • IEC 60751 Class B accuracy/tolerance_x000D_ • Temperature measurement range of -100 to +450°C_x000D_ • Rigid corrosion resistant 316 stainless steel sheath for protection of sensing element_x000D_ • IP67 rated aluminium alloy weatherproof terminal head_x000D_ • in” BSPP process connectio_x000D_ • M20 x 1.5mm cable entry with gland for external connections_x000D_ • 4 wire connection terminal block_x000D_ • Screw lid with chain for easy access to connections_x000D_ Applications_x000D_ These heavy-duty PRT sensor probes with their robust design are ideal for use in many industrial applications including the following:_x000D_ • Air conditioning and refrigeration_x000D_ • Chemical industry_x000D_ • Plastics processing_x000D_ • Stoves and grills_x000D_ • Air, gas and liquid temperature measurement_x000D_ • Exhaust gas temperature measurement_x000D_ • Food processing_x000D_ • Laboratories_x000D_ Frequently Asked Questions_x000D_ How Does a PRT Temperature Sensor Work?_x000D_ The PRT temperature sensor works by placing the sensor element (or process end) into the equipment or process that requires temperature measurement. As the temperature of the platinum resistance thermometer increases it’s resistance to the flow of electricity increases. For every increase per degree of temperature the electrical resistance also changes by a set ratio, this is called the temperature coefficient. For platinum, this ratio is .00385 ohm/ohm/°C which means for a Pt100 with a 100 ohm resistance the increase in resistance per degree of temperature would be 0.385 ohms. The total resistance reading can, therefore, be measured and converted into temperature._x000D_ How is the Resistance Measured?_x000D_ The resistance generated by the temperature sensor is measured by passing current through one of the wires to produce a voltage. This voltage is then measured using a suitable bridge or voltmeter and the resistance calculated in ohms using Ohm’s Law (R=V/I). Once the resistance is known you can convert it to a temperature reading using a calibration equation or a Pt100 table. A temperature measurement device or calibrator can also be connected to the leads of the probe that will automatically convert the measured resistance into a temperature reading._x000D_ Heavy duty Pt100 probe with terminal head_x000D_ Class B, 4 wire connection_x000D_ Available in probe lengths between 150mm & 600mm_x000D_ 6.0mm diameter in 316 stainless steel_x000D_ With or without 1/2"BSP parallel process connection_x000D_ Aluminium alloy weatherproof connection head_x000D_ Sensor temperature rating -50°C to +450°C_x000D_ PT100 Probes with Industrial Terminal Heads
