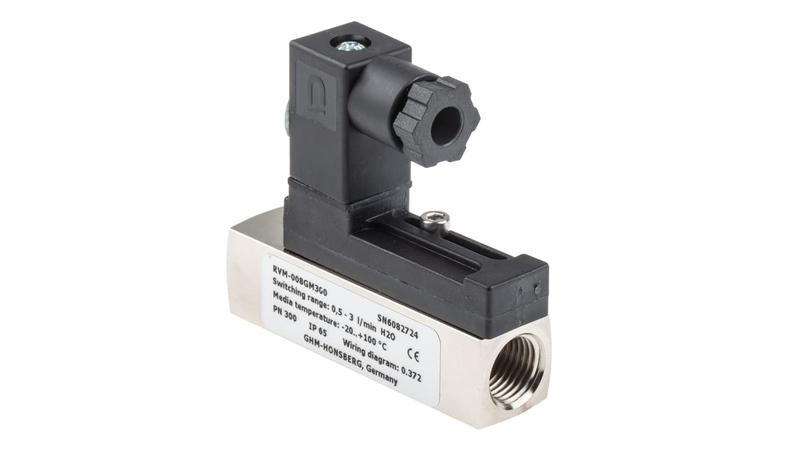

510-0571 RS PRO Piston Inline Flow Switch for Liquid, 0.5 L/min Min, 3 L/min Max

RS PRO Flow Switch_x000D_ This RS PRO flow switch uses a nickel-plated brass piston that's displaced proportionally by the flow. This generates a signal when the flow rate is above or below a certain value. You can set your chosen value by moving the switch on the outside of the device to the desired point within the scaled control range._x000D_ The switch can handle pressures of up to 300 bar, flow rates of up to 3 L/minute and fluid temperatures of up to +100°C. It's specifically designed for low flows and can be installed in any position._x000D_ You can use a flow switch to measure the volume of liquid or gas moving through an area in a specific amount of time. It operates by sending signals to other components in the system – such as a pump – to make it stop or start in order to adjust flow rate and pressure programmed levels._x000D_ Features and Benefits_x000D_ • Flow switch for liquid or gas_x000D_ • Minimum flow rate of 0.5 L/min_x000D_ • Maximum flow rate of 3 L/min_x000D_ • Supply voltage of 200 V ac_x000D_ • Supply current of maximum 1 A_x000D_ • Pipe diameter range of 1/4 in_x000D_ • 1/4 BSP connection_x000D_ • Maximum pressure of 300 bar_x000D_ • Nickel-plated brass inline piston_x000D_ • Maximum permissible fluid temperature of +100°C_x000D_ • Maximum operating temperature of +120°C_x000D_ RS PRO_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_ they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
