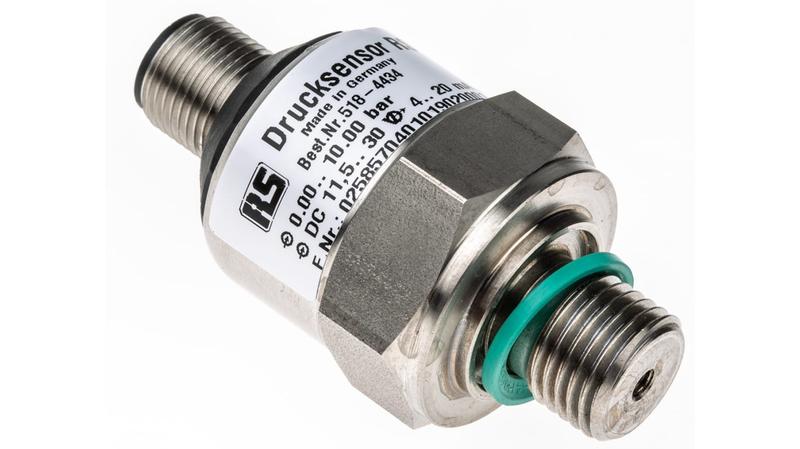

518-4434 RS PRO Pressure Switch, 0bar Min, 10bar Max, Analogue Output, Gauge Reading

RS PRO Gas, Liquid Gauge Pressure Switch, Analogue 0 → 10 bar, 10 → 30 V DC, G1/4 process connection_x000D_ This robust pressure switch from the trusted RS PRO range is made to measure pressures of 0 bar to 10 bar in liquid and gaseous media. It's suitable for use in various industrial applications, like in the medical, aviation, automotive and marine fields._x000D_ The product uses a piezo-resistive strain gauge sensor, which converts pressure into a linearly-proportional analogue electrical signal of between 4 mA and 20 mA. It's enclosed within a stainless steel housing and has an operational temperature range of -20°C to +125°C. There's a 1/4-inch threaded connector to attach to a panel or housing so the sensor comes into contact with the medium._x000D_ Electrical connections to the switch are made using a four-pin M12 connector. The sensor is powered by a DC voltage of between 10 V and 30 V, so it can use a number of different power sources._x000D_ Features and Benefits_x000D_ • Pressure switch_x000D_ • Measurement of gas and liquid media_x000D_ • Not front-flush mounting_x000D_ • Accuracy of ≤ 0.5%_x000D_ • Pressure reading range of 0 bar to 10 bar_x000D_ • Response time of ≤ 3 ms_x000D_ • Electrical connection using M12 connector_x000D_ • G1/4 process connection_x000D_ • Operational temperature range of -20°C to +125°C_x000D_ • Supply voltage of 10 V to 30 V DC_x000D_ • Analogue current output of 4 mA to 20 mA_x000D_ • Housing of 303 stainless steel material_x000D_ • IP rating of IP67_x000D_ RS PRO_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_ they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
