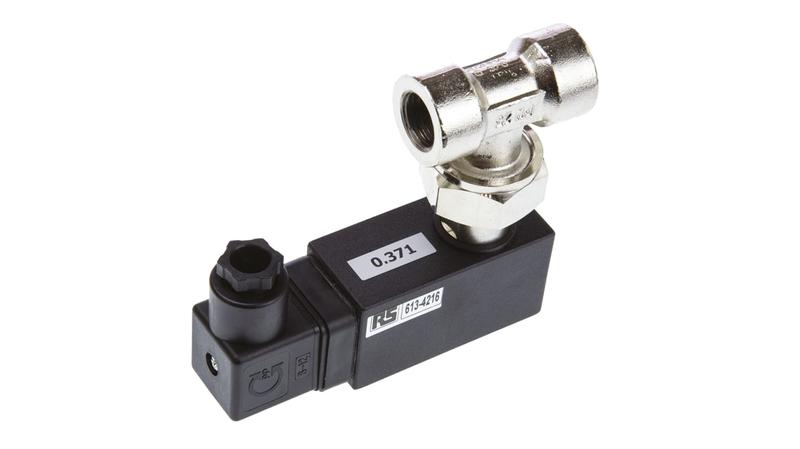

613-4216 RS PRO Paddle Flow Switch for Gas, Liquid, 4 L/min Min, 5.5 L/min Max

RS PRO Paddle Flow Switch, 4 L/min to 5.5 L/min_x000D_ This RS PRO flow switch uses a paddle to identify the movement of liquid in a pipeline. It's useful for indicating to an operator when a system isn't working and registers when there's a halt in fluid flow. The switch features very low pressure loss so it won't compromise the good working order of a system that relies on constant pressure to operate. It's dirt-resistant which saves on time as the unit doesn't need to be frequently cleaned. Good repeatability means the switch is capable of maintaining a constant flow of liquid for high levels of reliability._x000D_ You can use this flow switch in water cooling circuits and water chillers as it's compatible with both liquid and gas. As it contains only minimal levels of any harmful materials, it's Restriction of Hazardous Substances (RoHS) compliant._x000D_ Features and Benefits_x000D_ • Female 3/8 BSP (British Standard Pipe) connection_x000D_ • Current rating of 5 A_x000D_ • Paddle device type_x000D_ • Nickel-plated brass material_x000D_ • Flow rate range of 4 L/min to 5.5 L/min_x000D_ • Maximum media and operating temperature of +110°C_x000D_ • Maximum pressure of 25 bar_x000D_ • Gas and liquid media monitored_x000D_ • Pipe diameter range of 10 mm_x000D_ • Supply voltage of 250 V AC
