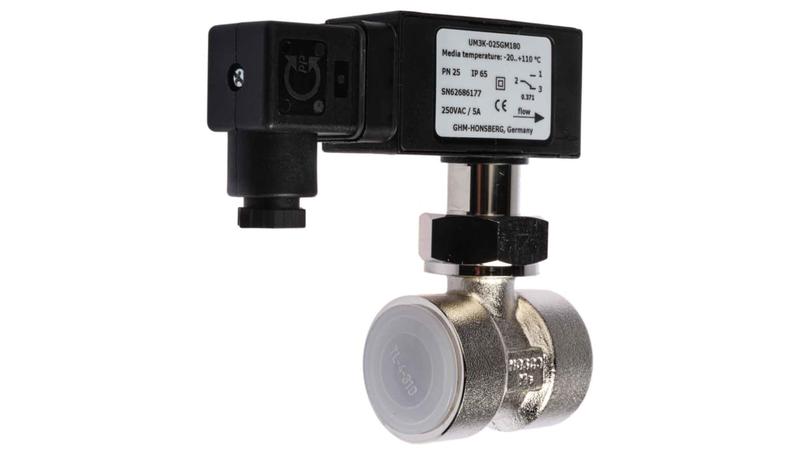

613-4244 RS PRO Paddle Flow Switch for Gas, Liquid, 14 L/min Min, 18 L/min Max

RS PRO Flow Switch_x000D_ Need to monitor the flow of a liquid and turn it off when it reaches a preset rate? This flow switch from RS PRO uses a spring-supported paddle with an attached magnet to assess rate of flow. When the rate approaches your predetermined value, the paddle's magnet nears another magnet with opposite polarity located outside the flow chamber. This second magnet is connected to a powerful microswitch, which can alter the flow when the rate is either above or below the preset value._x000D_ The paddle and other functional parts of the device are made from corrosion-resistant stainless steel, to keep out pollution. The switch features relatively low pressure loss and can be used to monitor water, gas and oil._x000D_ This kind of switch is mostly used to indicate when part of a system isn't working properly. It's commonly found in cooling, heating and ventilation equipment._x000D_ Features and Benefits_x000D_ • Paddle flow switch_x000D_ • Monitors the flow of gas and liquid_x000D_ • Maximum flow rate of 18 L/min_x000D_ • Minimum flow rate of 14 L/min_x000D_ • Maximum pressure of 25 bar_x000D_ • Body made from corrosion-resistant nickel-plated brass_x000D_ • Functional parts made from stainless steel_x000D_ • 1 in British Standard Pipe (BSP) female connection_x000D_ • DIN 43650-A plug_x000D_ • Maximum operating temperature of +110˚C_x000D_ • Supply voltage of 250 V_x000D_ • Current rating of 5 A_x000D_ • IP65 rating (resistant to dust and water spray)_x000D_ • Hermetic separation of electrical and hydraulic components_x000D_ • Height of 92 mm_x000D_ • Length of 50 mm_x000D_ • Width of 12 mm_x000D_ • Weight of 0.4 kg_x000D_ • Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards_x000D_ RS PRO_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_ they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
