621-2215 RS PRO Type J Thermocouple 175mm Length, 6mm Diameter → +350°C

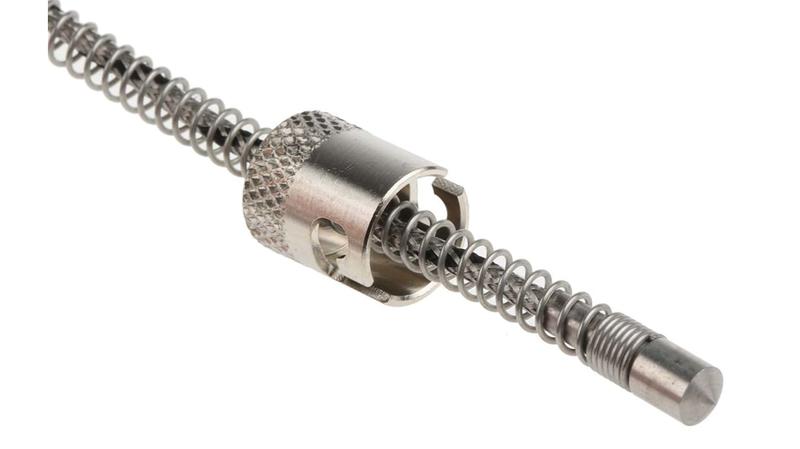

RS Pro Type J and K IEC Thermocouples with Adjustable Bayonet Probe_x000D_ From RS Pro a range of Type J and Type K thermocouple temperature sensors that conform to IEC 60584 standards with a grounded hot junction for a fast resposne time. These durable type J and Type K thermocouples have a 2 m long wire with glass fibre insulation and a stainless steel braid. The probe is fitted with an adjustable spring loaded bayonet probe to enable it to be fitted securely._x000D_ How does a Thermocouple Work?_x000D_ A thermocouple is a sensor used to measure temperature in a range of different processes and consists of two wire legs made from different metals joined together at their two ends to form two junctions. The hot, or measuring junction is connected to the body whose temperature is going to be measured. The cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables. This process is also known as the Seebeck Effect_x000D_ What is a Welded Grounded Junction?_x000D_ In a welded grounded junction the two thermocouple wires and sheath are welded together to form one junction at the probe tip. These thermocouples have a fast response time because all the thermocouple is making contact with the sheath allowing the heat to transfer easily._x000D_ What is an Adjustable Bayonet Probe_x000D_ The probes of these thermocouple sensors have an adjustable screw threaded spring 175 mm long with a slotted bayonet fixing cap. The bayonet cap screws along this spring and allows the immersion length of the thermocouple probe to be adjusted. Once in place the bayonet cap is secured to a bayonet adapter (which must be purchased separately - see stock number 621-2243) allowing the thermocouple to be firmly held in place within the recess. The advantages of this method of fixing are;_x000D_ • Immersion depth can be adjusted easily_x000D_ • Secure connection within machine recess_x000D_ • Positive pressure at the thermocouple tip and full immersion in process_x000D_ Features and Benefits_x000D_ • Adjustable bayonet probe_x000D_ • Grounded hot junction_x000D_ • Fast response time_x000D_ • Rugged glass fibre insulated wire with stainless steel overbraid_x000D_ Applications_x000D_ These Type J and Type K adjustable bayonet probe thermocouples are designed for direct installation into the process. The bayonet fitting makes them suited for applications where the thermocouple sensor tip is fitted directly into a drilled hole or recess in machinery. Typical applications include the plastics and rubber industry where they are used in extrusion and moulding machinery_x000D_ Standards_x000D_ IEC-BS 4937 60584-2 & IEC-BS 4937 60584-3
