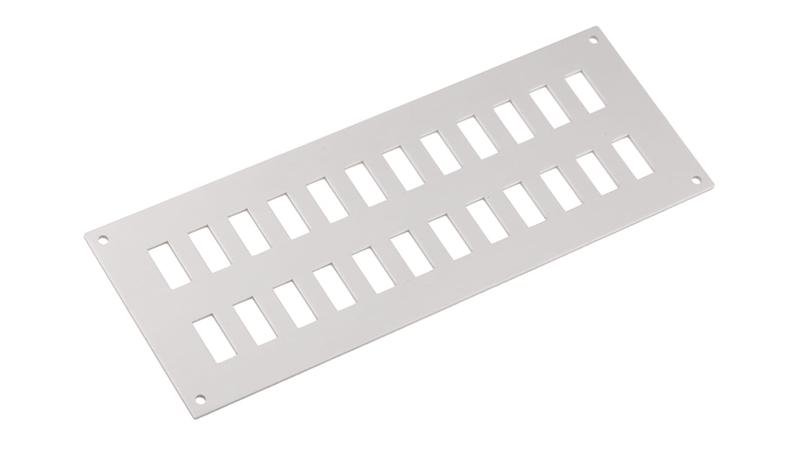

762-1168 RS PRO Thermocouple Panel for Use with Miniature Socket, Miniature, RoHS Compliant Standard

Anodised Aluminium Faceplates_x000D_ Faceplates suitable for mounting thermocouple panel sockets_x000D_ Height: Standard 66mm, Miniature 45mm_x000D_ Formula for Length: Standard (19 x n) + 31mm, Miniature (15 x n) + 25mm, n = number of ways_x000D_ Fixing holes 4 x 3.25mm diameter, 5mm in from each edge_x000D_ Anodised Aluminium Faceplates_x000D_ Suitable for miniature & standard fascia panel mounting thermocouple sockets_x000D_ Etch matt & satin anodised finish_x000D_ Miniature size panels available in 2, 4, 6, 12, 16, 20 & 24 way_x000D_ Standard size panels available in 1, 2, 3, 4 & 6 way_x000D_ 1 to 12 way panels in single row (as shown)_x000D_ 16, 20 & 24 way panels are in two rows i.e. 16 way = 2 rows of eight, 20 way = 2 rows of 10, 24 way_x000D_ = 2 rows of 12_x000D_ Both miniature & standard panels have 4 x 3.2mm fixing holes, positioned 5mm centre line from_x000D_ corners edges
