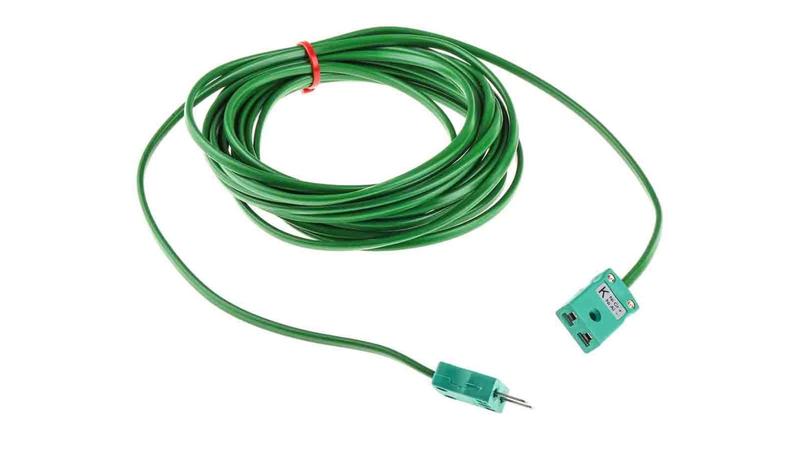

768-6585 RS PRO Type K Extension Cable, 5m, PVC Insulation, +220°C Max, 7/0.2mm

Thermocouple Extensions Leads_x000D_ A range of thermocouple extension leads in types K, J, T and N available with either a miniature or standard IEC connector. The thermocouple extension leads are available in 2 m, 5 m and 10 m lengths._x000D_ Cable Construction:_x000D_ PVC insulated cable_x000D_ IEC colour coded_x000D_ Laid flat, side by side & PVC sheathed_x000D_ Insulation rating -10 → 105 °C_x000D_ Miniature connector (flat plug pins) or standard connector (solid, round plug pins) versions available_x000D_ Contacts are polarised to prevent incorrect connection_x000D_ RS PRO Extension Cable Type K, -10°C → +220°C 2 Core PVC Sheath 5 m_x000D_ Need to extend a thermocouple cable to use in temperature sensing applications? This 5-m Type K thermocouple extension cable from the RS PRO range is fitted with a miniature connector plug and socket with two flat plug pins. Insulated with PVC for flexibility and durability, the cable can operate up to +220˚C without melting and down to -10˚C without cracking._x000D_ Two seven-stranded cores have a cross-sectional area of 0.2 mm² and there are polarised contacts to make sure you don't make an incorrect connection._x000D_ This product is stringently tested to ensure it meets IEC standards as a safe thermocouple cable and is also colour-coded in accordance with the IEC scheme. It won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and is RoHS compliant so you can be sure it contains only minimal levels of hazardous substances._x000D_ Features and Benefits_x000D_ • Type K thermocouple extension cable wire for use with temperature-sensing applications_x000D_ • Sheathed in PVC for strength and flexibility_x000D_ • Minimum operating temperature of -10°C without cracking_x000D_ • Maximum operating temperature of +220°C without melting_x000D_ • Two cores_x000D_ • Seven-stranded conductors with a cross-sectional area of 0.2 mm each_x000D_ • Length of 5 m_x000D_ • Conforms to IEC standards_x000D_ • Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)_x000D_ RS PRO_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_ they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
