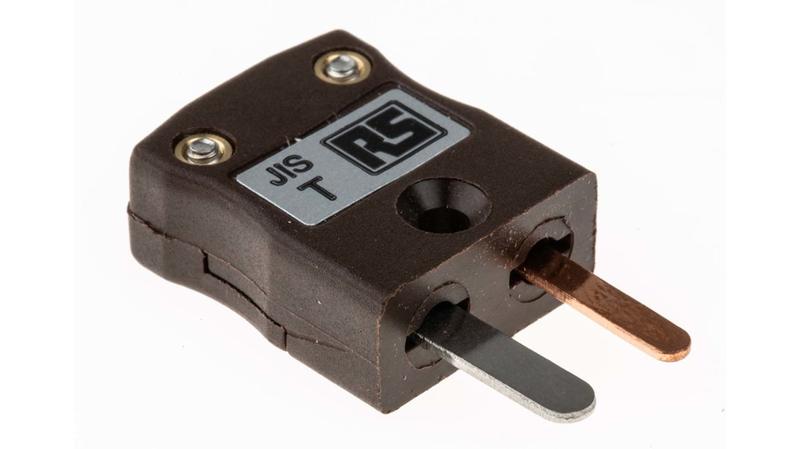

771-8777 RS PRO In-Line Thermocouple Connector for Use with Type T Thermocouple, Miniature, JIS Standard

RS PRO JIS Thermocouple Connector for use with Type T Thermocouple, Miniature_x000D_ The RS PRO Type T thermocouple connector plug is most often chosen for low-temperature applications. Thanks to its copper-constantan alloy wires, it has a stable configuration that remains constant at different temperatures._x000D_ The miniature, in-line plug can operate at temperatures ranging from -200°C to +350°C and is encased in a robust thermoplastic housing that helps protect its components from rust and corrosion. The unit has flat pins that are also polarised to help ensure you don't make an incorrect connection. Type T connectors have a copper positive pin and copper-nickel negative pin, both of which are true thermocouple alloys to ensure as much accuracy as possible._x000D_ The connector's small size and fast response time means that it can be used in hazardous or challenging settings, while still giving you swift and accurate temperature variation measurements. These thermocouple connectors are well suited to cryogenic, laboratory and deep-freeze applications._x000D_ Features and Benefits_x000D_ • Miniature Type T thermocouple connector plug for use with Type T thermocouple_x000D_ • In-line connector_x000D_ • Minimum operating temperature of -35°C_x000D_ • Maximum operating temperature of +220°C_x000D_ • Colour coded brown in accordance with JIS (Japanese Industrial Standards) specifications_x000D_ • Compatible with all other makes of equivalent connectors_x000D_ • Connectors will accept thermocouple cable up to 4 mm in diameter_x000D_ • Sockets available and can be supplied as in-line or panel mounted versions_x000D_ • RoHS (Restriction of Hazardous Substances) compliant_x000D_ RS PRO_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_ they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
