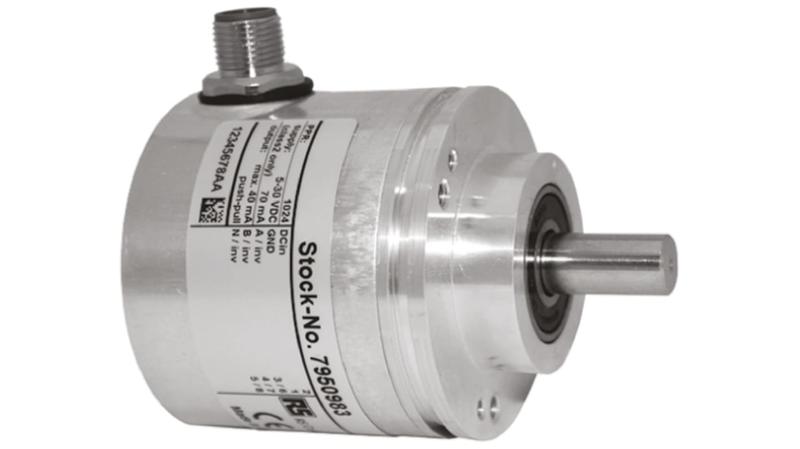

795-1093 RS PRO Incremental Encoder, 1024 ppr, HTL Inverted Signal, Solid Type, 10mm Shaft

RS PRO Incremental Encoder 1024 PPR, Solid Shaft_x000D_ Need to record rotations per minute (RPM), speed or distance in a high-speed rotating device? Use this RS PRO incremental encoder. The body is made of strong die-cast aluminium material, so you can use it for demanding industrial applications._x000D_ The cover has an Ingress Protection (IP) rating of IP67. This means it can withstand submersion in up to one metre of water for 30 minutes and is protected against dust. It can withstand high radial and axial loads for maximum durability. Its high PPR (pulses per revolution) of 1024 means it provides highly accurate readings._x000D_ For resistance to rust and corrosion, the unit is powder-coated. It's also a low-maintenance choice as its high electrical immunity means it's not susceptible to noise._x000D_ Features and Benefits_x000D_ Current rating of 70 mA (milliamperes)_x000D_ Incremental encoder technology_x000D_ Ingress Protection (IP) rating of IP67_x000D_ Operating temperature range of -20ºC to +80ºC_x000D_ Maximum revolutions of 8000 rpm (revolutions per minute)_x000D_ Clamping flange mounting type_x000D_ HTL (High Transistor Logic) inverted output signal type_x000D_ Overall depth of 90 mm_x000D_ Overall width of 58 mm_x000D_ Shaft diameter of 10 mm_x000D_ Resolution of 2500 ppr_x000D_ Pulses per revolution of 1024 PPR_x000D_ Solid shaft type_x000D_ Supply voltage of 5 to 30 V DC_x000D_ Switching frequency of 200 kHz
