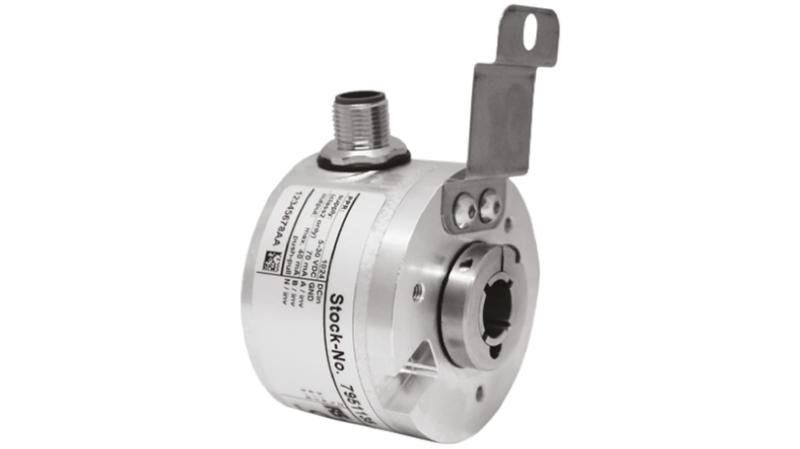

795-1160 RS PRO Incremental Encoder, 1024 ppr, HTL Inverted Signal, Hollow Type, 12mm Shaft

RS PRO Incremental Encoder 1024 PPR, Hollow Shaft_x000D_ Use this RS PRO incremental encoder if you need to record the rotations per minute (RPM), speed or position of shafts in industrial machinery. It offers long-lasting performance as its body is made of die-cast aluminium. This means you can use it in demanding industrial environments, such as construction sites and manufacturing plants._x000D_ The encoder features high noise immunity to ensure reliable communication and accurate readings. It's suitable for installation in tight spaces as its through-bore design means it can be mounted on any part of the shaft. You can also install this part indoors or outdoors as it has an Ingress Protection (IP) rating of IP65, meaning it's dust-tight and will resist low-pressure waterjets. Use this encoder on any shaft with a speed of up to 6000 rpm (revolutions per minute) at temperatures of up to +80°C._x000D_ Features and Benefits_x000D_ Current rating of 70 mA_x000D_ Incremental encoder technology_x000D_ Ingress Protection (IP) rating of IP65_x000D_ Operating temperature range of -20ºC to +80ºC_x000D_ Maximum revolutions of 6000 rpm_x000D_ Hollow shaft flange mounting type_x000D_ HTL (High Transistor Logic) inverted output signal type_x000D_ Overall depth of 44.5 mm_x000D_ Overall diameter of 58 mm_x000D_ Resolution of up to 2500 PPR_x000D_ Pulses per revolution of 1024 PPR_x000D_ Shaft diameter of 12 mm_x000D_ Hollow shaft type_x000D_ Supply voltage of 5 to 30 V DC_x000D_ Switching frequency of 200 kHz
