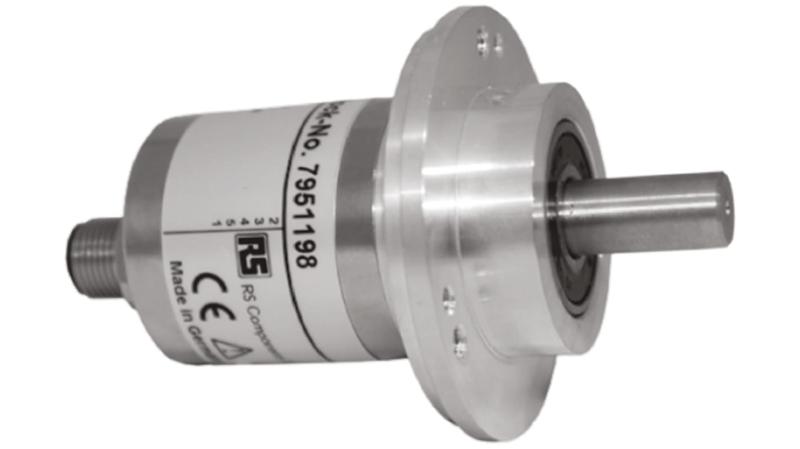

795-1198 RS PRO Absolute Encoder, 262144 ppr, Solid Type, 10mm Shaft

RS PRO Absolute Encoder 262,144 PPR, Solid Shaft_x000D_ For sensing and measuring precise shaft positions, choose this absolute encoder from RS PRO. The unit is typically used in industrial robots, computer numerical control (CNC) machines and assembly units to determine the orientation of moving parts._x000D_ This encoder can withstand high axial and radial loads, making it the ideal choice for heavy-duty applications. It operates based on CANOpen technology so it doesn't require any batteries or gears. This feature ensures a virtually maintenance-free and environmentally friendly operation._x000D_ A two-colour LED indicator on this encoder makes it easy to check the operating status as well as any error messages. The unit can be mounted onto bearings with a maximum operating speed of 8000 rotations per minute (RPM), making it a versatile choice for industrial settings. It's been tested for quality and reliability._x000D_ Features and Benefits_x000D_ • Current rating of 50 mA (milliamperes)_x000D_ • Absolute encoder technology_x000D_ • Ingress Protection (IP) rating of IP67_x000D_ • Operating temperature range of -40°C to +80°C_x000D_ • Maximum revolutions of 8000 rpm_x000D_ • Clamping flange mounting type_x000D_ • Overall depth of 91 mm_x000D_ • Overall width of 58 diameter mm_x000D_ • 262,144 pulses per revolution_x000D_ • 16,384 steps per revolution_x000D_ • Resolution of 18 bit_x000D_ • Shaft diameter of 10 mm_x000D_ • Solid shaft type_x000D_ • Supply voltage of 10 to 32 V DC_x000D_ • Switching frequency of 200 kHz
