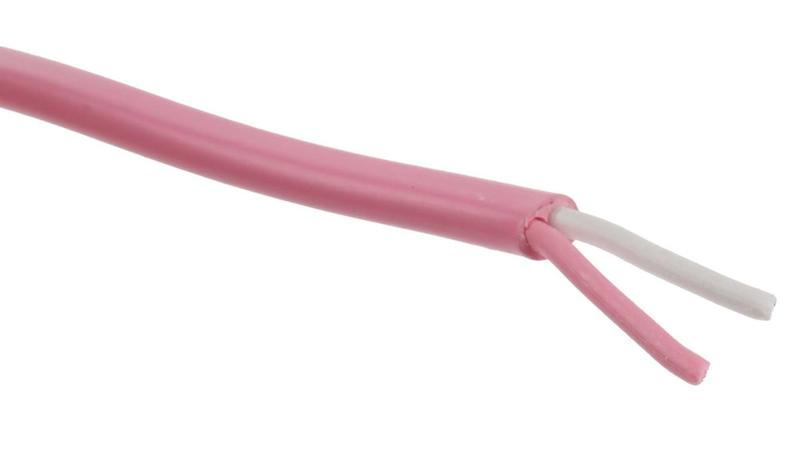

827-5640 RS PRO Type N Thermocouple Wire, 100m, PVC Insulation, +105°C Max, 7/0.2mm

RS PRO Thermocouple & Extension Wire Type N, -10°C → +105°C 2 Core PVC Sheath 100 m_x000D_ Need a thermocouple and extension wire to construct a temperature sensor for a thermostat? This cable from the RS PRO range is insulated with durable PVC, making it both waterproof and very flexible. With a wide range of operating temperatures, it can be used down to -10˚C without cracking and up to +105˚C without melting. It's available in a length of 100 m._x000D_ Each flat pair of conductors has seven strands of 0.2 mm. The cable has colour-coded cores and jacket that indicate it's certified as a safe Tolerance Class 2 thermocouple cable, conforming to the IEC-584-3 standard. It's also been stringently tested to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). You'll find that the cable's compliant with RoHS, meaning it contains minimal levels of hazardous substances._x000D_ Features and Benefits_x000D_ • Type N thermocouple and extension wire for use in temperature-sensing applications_x000D_ • PVC outer jacket_x000D_ • Length of 100 m_x000D_ • Flat pair of cores with seven strands of 0.2 mm_x000D_ • Minimum operating temperature of -10°C without cracking_x000D_ • Maximum operating temperature of + 105°C without melting_x000D_ • Conforms to IEC-584-3 standard as a Tolerance Class 2 thermocouple cable_x000D_ • Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)_x000D_ RS PRO_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_ they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
