834-7584 RS PRO, 9 → 15 V

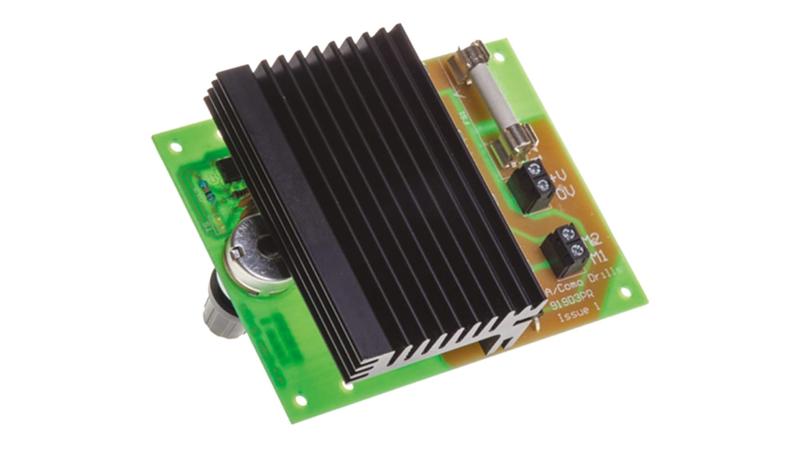

MFA Como Drills Variable Speed Regulator_x000D_ The motor controller 919D3PR is a bi-directional motor speed regulator that can deliver a current of up to 12 A when supplied by a voltage in the range 9 V to 15 Vdc._x000D_ The controller uses pulse width modulation (PWM) to allow smooth, efficient bi-directional control of DC motors and other devices. The output is fully adjustable from 0 to 12 Vdc and can supply currents of up to 12 A continuously._x000D_ A soft-start feature is built into the control function to progressively apply the output voltage upon switch-on, thereby reducing the characteristically large surge of current that can occur if the output is initially set too high with a motor load._x000D_ Robust construction for heavy duty environments_x000D_ 9 to 15 Vdc input voltage range (12 Vdc nominal)_x000D_ Smooth bipolar (+ or -) output control up to 12A dc continuous_x000D_ Incorporates overcurrent and accidental supply-reversal protection (Additional thermal protection option available)_x000D_ Soft Start feature reduces In-Rush current on initial energisation_x000D_ Easy installation by panel mounting or screw fixing_x000D_ Simple Screw-in terminal blocks for supply and motor connections_x000D_ Control knob and insulating washers included_x000D_ MFA Como Drills Range
