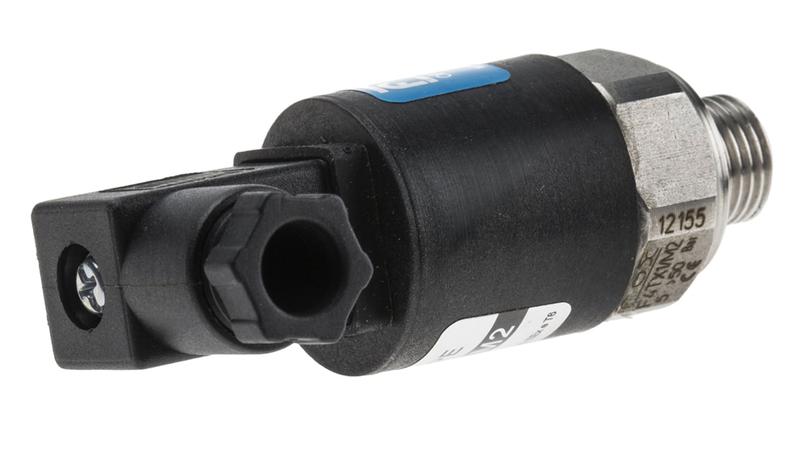

880-2283 RS PRO Pressure Sensor, 5bar Min

RS PRO Hydraulic Pressure Sensor, BSP 1/4, M2 (DIN Plug), 5 bar to 50 bar_x000D_ This pressure sensor from RS PRO connects to a standard 1/4 inch BSP (British Standard Pipe) socket and contains a microswitch that closes when the specified pressure is reached. The desired triggering pressure can be set by adjusting a screw on the rear of the assembly. The microswitch has three connections, allowing it to be used as either a normally open or normally closed switch, depending on the control system requirements._x000D_ The switch has a built-in mechanical stop to ensure that no damage is done if the system is over-pressured, however, it is recommended that the system is kept under 50 bar. The sensor housing is built with an Ingress Protection (IP) rating of IP65, meaning that it can be used outdoors in all weather, but is not suitable for immersion. The system is designed with a 10-25% hysteresis to reduce switch bounce on the output signal, preventing multiple triggers._x000D_ Features and Benefits_x000D_ • Input connection thread of 1/4 BSP (British Standard Pipe)_x000D_ • BSP input connection thread standard_x000D_ • Operating temperature range of -25°C to +85°C_x000D_ • Operating pressure range of 5 to 50 bar_x000D_ • M2 (DIN plug) output connection type
