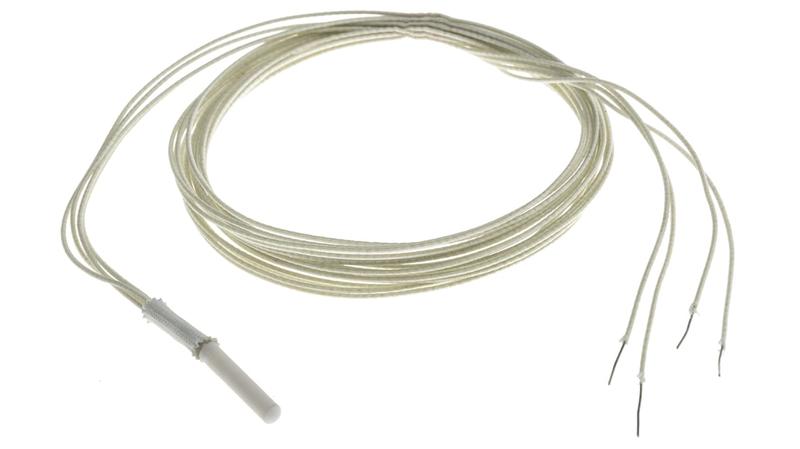

891-9163 RS PRO PT100 RTD Sensor, 2.8mm Dia, 15mm Long, 4 Wire, Probe, Class B +350°C Max

RS PRO PT100 RTD Sensor, 2.8 mm Diameter, -50°C to +350°C_x000D_ This resistance temperature detector (RTD) sensor is used to measure temperatures in applications that require a high degree of temperature stability. The four-wire configuration allows two of the wires to power the circuit and the other two to read the temperature, resulting in fast and highly accurate temperature detection._x000D_ For enhanced precision, the sensor is made with a thin platinum coil encased in a ceramic substrate. This wire-wound construction resists extreme temperatures and reduces interference for sensing temperatures as low as -50°C and as high as +350°C._x000D_ This sensor is vibration-resistant for use in heavy-duty industrial environments. It's suitable for temperature measurement applications in dry, non-contaminating atmospheres._x000D_ Features and Benefits_x000D_ • Class B accuracy_x000D_ • Cable length of 1 m_x000D_ • Maximum temperature sensed of +350°C_x000D_ • Minimum temperature sensed of -50°C_x000D_ • Four wires_x000D_ • Probe diameter of 2.8 mm_x000D_ • Probe length of 15 mm_x000D_ • Platinum probe material_x000D_ • Probe process connection_x000D_ • PT100 sensor type_x000D_ • Lead wire termination type_x000D_ • PT100 thermocouple type
