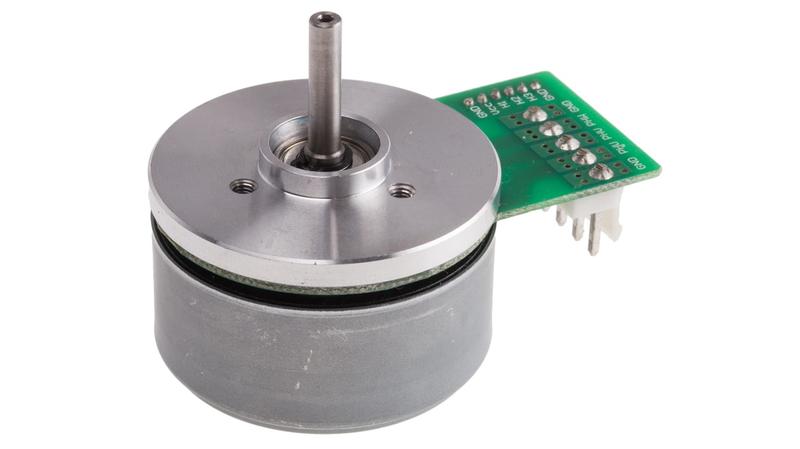

892-8776 RS PRO Brushless, 24 V, 0.36 Nm, 4840 rpm, 4mm Shaft Diameter

RS Brushless Flat DC Motors_x000D_ These 45BLW flat motors are the ideal solution for many applications due to their compact, flat design - 45mm diameter and a length <30 mm._x000D_ In the 45BLW motors (16 poles design), the permanent magnets are located on the external rotor which rotate around the internal stator with the windings. In addition to the shorter design, the advantage of this construction compared to internal rotor motors comes from having the same output with lower torque ripple due to the rotor’s higher moment of inertia._x000D_ Flat DC Motor_x000D_ Brushless technology_x000D_ Rated Voltage 24 Vdc_x000D_ Hall effect sensors with 120° electrical angle_x000D_ Class B insulation_x000D_ 45 mm diameter_x000D_ DC Brushless Motors_x000D_ A range of Brushless DC Motors with integrated communication electronics._x000D_ Speed control feedback via hall sensors.
