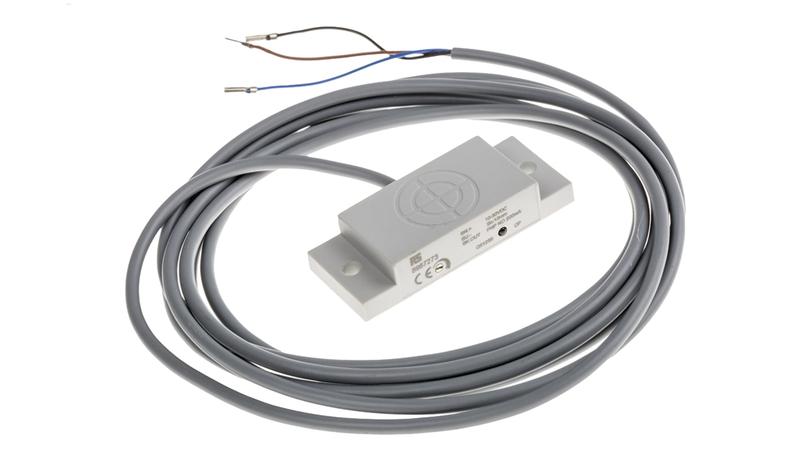

896-7273 RS PRO Capacitive Block-Style Proximity Sensor, 10 mm Detection, PNP Output, 10 → 30 V dc, IP67

RS PRO Capacitive sensor - Block, PNP Output, 10 mm Detection, IP67, Cable Terminal_x000D_ This RS PRO capacitive sensor is a proximity sensor you can use to detect metallic and non-metallic objects without physical contact. The sensor uses an electrical field to detect and measure materials that are conductive or have a greater dielectric constant than air._x000D_ This unit is made from polybutylene terephthalate (PBT) to ensure it's strong and resistant to chemicals and heat. It has an Ingress Protection (IP) rating of IP67, which means it's shielded against dust and temporary immersion in water. The sensor also features reverse polarity and short circuit overload protection, so you can be sure your equipment will be protected should something go wrong with the wiring._x000D_ Features and Benefits_x000D_ • Block body style_x000D_ • Detection range of 10 mm_x000D_ • Dimensions of 50 (length) x 20 (width) x 10 mm (depth)_x000D_ • PBT (Polybutylene Terephthalate) housing material_x000D_ • IP (Ingress Protection) rating of IP67_x000D_ • Maximum operating temperature of +55°C_x000D_ • Minimum operating temperature of -10°C_x000D_ • Non-flush mounting style_x000D_ • Output type of PNP (Positive Negative Positive)_x000D_ • Reverse polarity protection_x000D_ • Capacitive sensor technology_x000D_ • Shielded_x000D_ • Short circuit overload protection_x000D_ • Conforms to CE (Conformité Européenne) and IEC (International Electrotechnical Commission) standards_x000D_ • Supply voltage of 10 to 30 V DC_x000D_ • Switching current of 200 mA (milliamperes)_x000D_ • Switching frequency of 30 Hz_x000D_ • Cable terminal type
