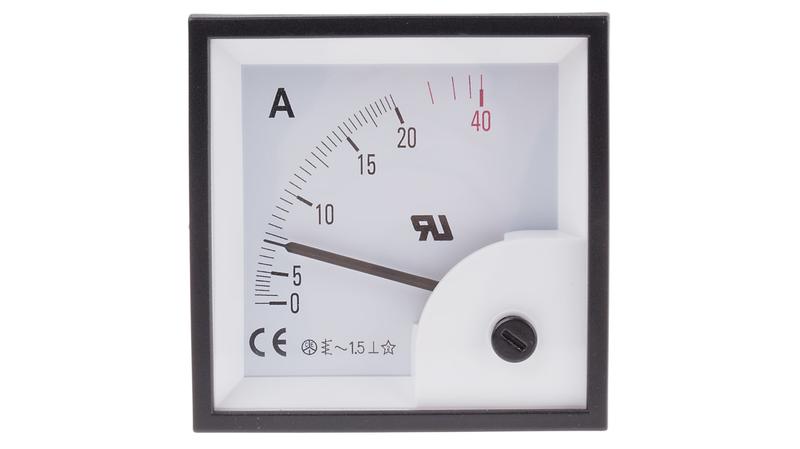

901-0340 RS PRO Analogue Panel Ammeter 40A AC, 68mm x 68mm, ±1.5 % Moving Iron

RS PRO Analogue Panel Ammeter 20 A AC, 68 mm x 68 mm, ±1.5% Moving Iron_x000D_ Need an accurate way to measure and display the current level in an electrical circuit? This RS PRO analogue panel ammeter displays the AC current to a 1.5 currency class, equivalent to a margin of error of 1.5%. You'll find it in industrial settings such as electronics manufacturing facilities, power plants and telecommunications exchanges._x000D_ Built to last, the ammeter comes in hardwearing ABS (Acrylonitrile Butadiene Styrene) thermoplastic and polycarbonate housing. The text is easy to read, thanks to the bold black typeface and contrasting white background. You can easily tell when the amperage is too high, as there's a bright red danger zone._x000D_ Features and Benefits_x000D_ • CE (Conformité Européenne), RoHS (Restriction of Hazardous Substances) compliant, TUV (German Equipment and Product Safety Act) certified, UL (Underwriters' Laboratories) E327849 approvals_x000D_ • AC current type_x000D_ • Cutout height of 68 mm_x000D_ • Cutout width of 68 mm_x000D_ • Depth of 59 mm_x000D_ • Analogue display type_x000D_ • Maximum value of 20 A_x000D_ • Measurement range of 0 to 40 A_x000D_ • Meter accuracy of ±1.5%_x000D_ • Minimum displayed value of -25°C_x000D_ • Maximum temperature of +50°C_x000D_ • Moving iron element_x000D_ • RS PRO series
