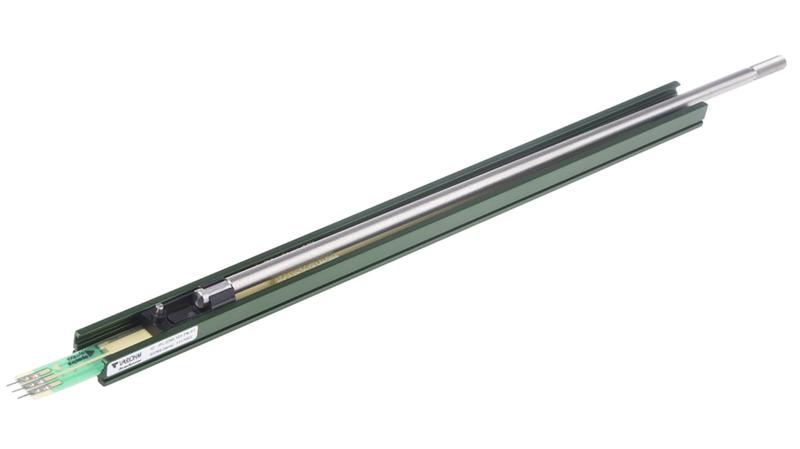

909-4212 RS PRO Transducer Linear Transducer

RS PRO Linear Transducer_x000D_ Use this linear transducer from the RS PRO range to take accurate positional measurements of linear motion control devices. This type of sensor is most commonly used in assembly lines, factory automation setups and conveying mechanisms._x000D_ The unit is lightweight, compact and easy to maintain as it has a sealed membrane linear potentiometer set-up. It also provides high accuracy and repeatability without becoming less sensitive over time. Its housing is highly supportive and makes mounting the unit onto any device straightforward._x000D_ This sensor has been rigorously tested for quality and reliability. It has a wide operating temperature of -40°C to +85°C, meaning it's able to withstand harsh environments. Thanks to its Ingress Protection (IP) rating of IP65, it's resistant to dust and low-pressure waterjets._x000D_ Features and Benefits_x000D_ Electrical travel of 200 mm_x000D_ Ingress Protection (IP) rating of IP65_x000D_ Operating temperature range of -40ºC to +85ºC_x000D_ Dimensions of 8.6 (height) x 28.1 (width) x 227 mm (depth)_x000D_ Resistance of 10 kΩ_x000D_ Starting force of 3 N (Newtons)_x000D_ Stroke of 200 mm
