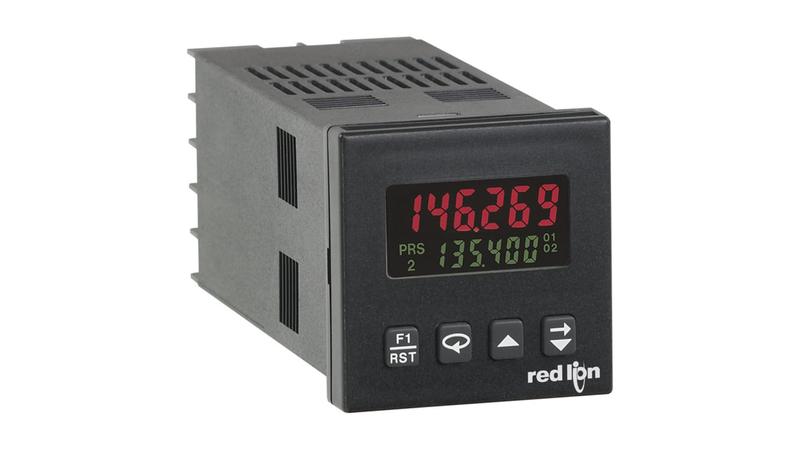

C48CS103 Red Lion C48C Counter Counter, 6 Digit, 50/60Hz, 85 → 250 V ac

Single Preset Counter- C48C Series_x000D_ The C48C series of Counters is available with single preset and features a 7 segment, 2 line by 6-digit display. The counters offer a choice of nine programmable counting modes for use in applications requiring bi-directional, anti-coincidence and quadrature counting. They can also be programmed to register counts on both edges of the input signal, providing frequency doubling capability._x000D_ • 7 segment, 2 line 6-digit LCD display_x000D_ • Programmable user inputs and front panel function key_x000D_ • Quadrature sensing (up to 4 times resolution)_x000D_ • Bi-directional counting, up/down control_x000D_ • Status indicators for outputs_x000D_ • Parameter security via programmable operator access privileges and protected value menu_x000D_ • Horizontal or vertical stacking of multiples units_x000D_ • 85-250 V ac power supply_x000D_ • RS485 serial communications option_x000D_ • Choice of numeric data entry modes_x000D_ • NEMA 4X/IP65 sealed bezel_x000D_ Red Lion Digital Counter_x000D_ The Red Lion C48C series 6-digit LCD display, 1/16DIN mounting single preset counter’s voltage rating ranges between 85VAC and 250VAC. This counter offers a choice of nine programmable counting modes for use in applications requiring bi-directional, anti-coincidence and quadrature counting. It can also be programmed to register counts on both edges of the input signal, providing frequency doubling capability._x000D_ Features and Benefits_x000D_ •_x000D_ Maximum count frequency is 60Hz_x000D_ • Status indicators for output_x000D_ • Parameter security via programmable operator access privileges and protected value menu_x000D_ • Horizontal or vertical stacking of multiples units_x000D_ • RS485 serial communications option_x000D_ • Measurement ranges between 0.00001h and 9.99999h_x000D_ • Choice of numeric data entry modes_x000D_ • NPN OC/Relay Output_x000D_ • Plug-in screw terminals_x000D_ • Operating temperature ranges between 0°C and 50°C_x000D_ Applications_x000D_ •_x000D_ Industrial counting applications_x000D_ • Control and monitoring systems_x000D_ • Manufacturing assembly lines_x000D_ Certifications_x000D_ •_x000D_ UL Recognized Component, File #E137808_x000D_ • EN 50081-2_x000D_ Red Lion
