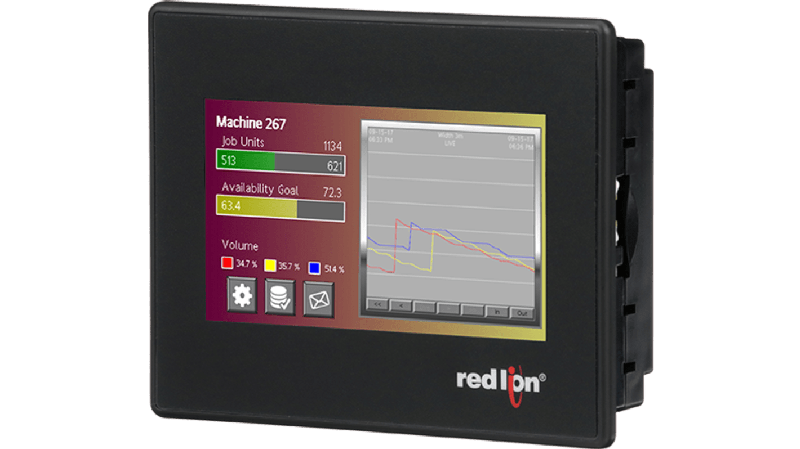

CR30000400000310 Red Lion CR3000 Series TFT Touch-Screen HMI Display - 4.3 in, TFT Display

The Red Lion CR3000 series is the perfect solution for applications that require the operator to monitor and control more than just a single device. With up to four serial ports and two Ethernet ports, these HMI displays can connect to multiple serial and Ethernet devices simultaneously, including PLCs, variable frequency drives, bar code scanners, etc. The CR3000 performs the functions of a multiple protocol converter, using up to four high-speed serial communications ports and one or two 10/100 Base-TX Ethernet ports._x000D_ Configured using crimson 3.1 software_x000D_ Three or four isolated serial communication ports, (2 RS-232 and 1 or 2 RS-422/485) - model dependent_x000D_ One or two 10 base t/100 base-TX Ethernet ports_x000D_ Communicate with up to ten protocols simultaneously_x000D_ Accepts one expansion communication module to add can open, J1939, Profibus, device net and more_x000D_ One USB device port to load the unit’s configuration or transfer data to and from a PC_x000D_ SD card socket for loading database in the field_x000D_ Industrial TFT LCD colour display_x000D_ NEMA 4X/IP66 front panel_x000D_ Three front panel led indicators_x000D_ Power unit from 10-30 Vdc supply_x000D_ Resistive analogue touchscreen
