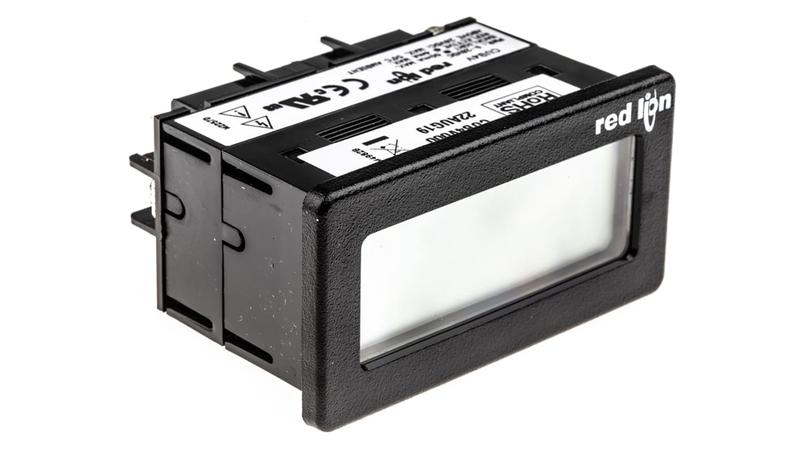

CUB4V000 Red Lion Digital Voltmeter DC, LCD Display 3.5-Digits ±0.1 %

Red Lion Digital DC Voltmeter_x000D_ The Red Lion digital DC voltmeter is a high-quality, compact and affordable instrument designed using the latest technology. It has a 3.5 digit, LCD with 0.6in (15.2mm) high digits and a DIP switch with a selectable decimal point. The unit is constructed of a lightweight, high impact plastic case with a clear viewing window. The optional micro line/sensor power supply (MLPS1000) can be attached to the rear of an installed to provide the necessary power for the unit. The optional supply can be powered from an 85VAC to 250VAC source. This instrument is used in industrial environments._x000D_ Features and Benefits_x000D_ Four selectable DC ranges (0mV to 199.9mV, 1.999V, 19.99V, 199.9V)_x000D_ Built-in scaling provided_x000D_ Auto zeroing circuit_x000D_ Selectable decimal points_x000D_ Wire connections made via screw clamp type terminals_x000D_ Fits din standard cut-out 2.68in (68mm) x 1.30in (33mm)_x000D_ 9VDC to 28VDC powered_x000D_ Automatic offset correction_x000D_ Freely selectable decimal point_x000D_ Free scaling via potentiometer_x000D_ Certifications_x000D_ NEMA 4X_x000D_ IP65 rated sealed front panel bezel_x000D_ UL approved_x000D_ CSA certified_x000D_ CE certified_x000D_ cURus certified
