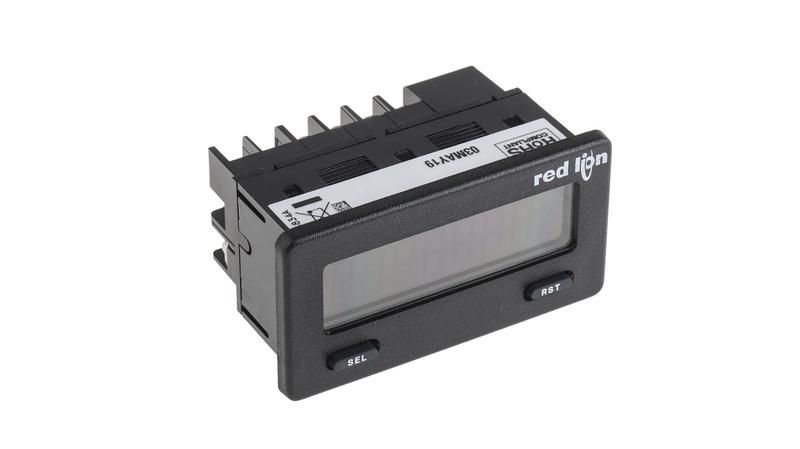

CUB5B000 Red Lion Counter, 8 Digit, 20kHz, 9 → 28 V dc

Red Lion Digital Counter_x000D_ The Red Lion CUB5 series digital dual counter and rate indicator is an 8-digit, backlight LCD display miniature electronic device. It has a voltage rating ranges between 9VDC and 28VDC. The intensity of the display can be adjusted from dark room applications to bright light applications. This easy to read display offers 12mm character height. The CUB5 models cover both, digital and analogue signals including count, voltage, current, time, process, rate and temperature inputs. This counter has a maximum count frequency of 20KHz._x000D_ Features and Benefits_x000D_ Anti-coincidence counting (add/add and add/sub)_x000D_ Relay output_x000D_ Programmable scaling for count/rate_x000D_ Display colour available in red and green_x000D_ Bi-directional counting, up/down control_x000D_ Resettable display_x000D_ Panel cut-out dimensions are 68mm x 33mm_x000D_ Plug-in screw terminal_x000D_ Communication option cards include RS-232, RS-485, and USB_x000D_ Operating temperature ranges between -35°C and 75°C_x000D_ Applications_x000D_ Industrial counting applications_x000D_ Control and monitoring systems_x000D_ Manufacturing assembly lines_x000D_ Certifications_x000D_ IP65 rated
