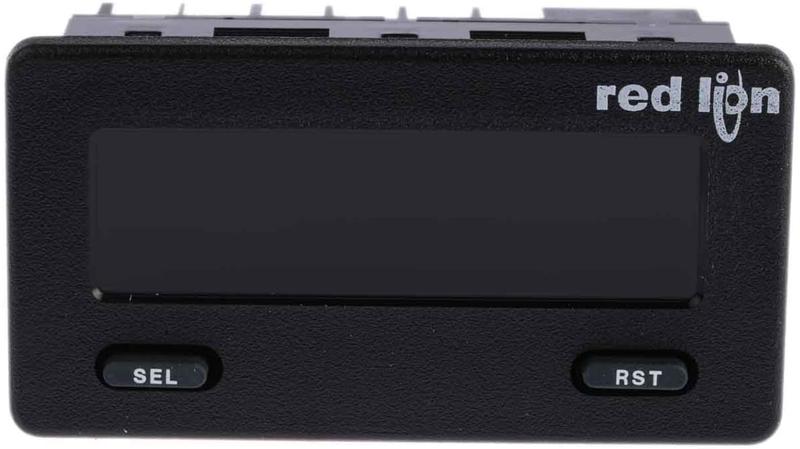

CUB5PB00 Red Lion CUB5 LCD Digital Panel Multi-Function Meter for Current, Voltage, 32.8mm x 68mm

Red Lion Process Meter_x000D_ The Red Lion process meter a high-quality, compact and affordable instrument designed using the latest technology. Each unit has a red backlight 5 digit LCD with 0.48in (12.2mm) high digits and a DIP switch with a selectable decimal point. The backlight version is user selectable for the desired colour and also has variable display intensity. It can be easily expanded with the addition of option cards. The setpoint output cards are field installable with programmable setpoints. Serial communications capability for RS232 or RS485 can be added with a serial option card._x000D_ Accessories:_x000D_ Small and compact display._x000D_ Free scaling._x000D_ Features and Benefits_x000D_ Three selectable DC ranges (0V to 10V, 0mAto 20mA, 0mA to 50mA )_x000D_ Wire connections made via screw clamp type terminals_x000D_ 9VDC to 28VDC powered_x000D_ Automatic offset correction_x000D_ Freely selectable decimal point_x000D_ Free scaling via potentiometer_x000D_ Cut-out height of 32.8mm and width of 68mm and depth of 49.8mm_x000D_ Certifications_x000D_ NEMA 4X_x000D_ IP65 rated sealed front panel bezel_x000D_ cULus approved_x000D_ CSA certified_x000D_ CE certified
