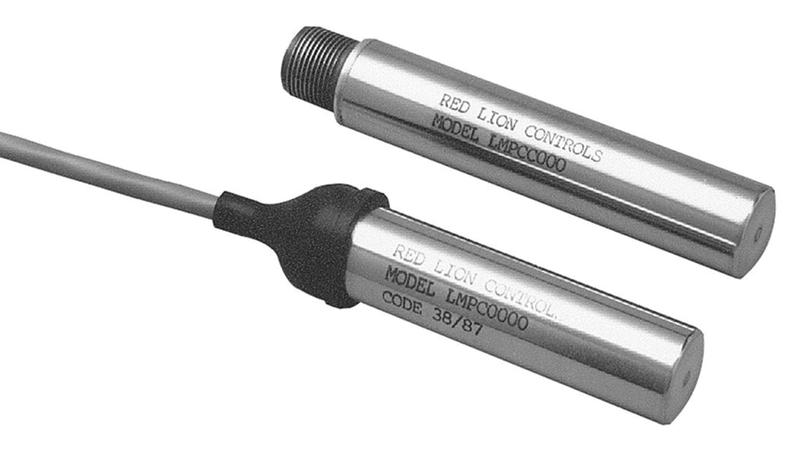

LMPC0000 Red Lion Magnetic Pickup

Logic Magnetic Pickups_x000D_ Logic Magnetic Pickups Super Sensitive_x000D_ LOGIC MAGNETIC PICKUPS (LMP’s) provide sensing sensitivities with_x000D_ several orders of magnitude that are greater than standard magnetic pickups when_x000D_ detecting moving ferrous targets. By locating a high gain pre-amplifier & signal_x000D_ processing circuit inside the magnetic pick up housing, larger airgaps and slower_x000D_ target surface speeds can be achieved, thereby greatly expanding application_x000D_ versatility as compared with conventional magnetic pickups. Also these units_x000D_ have excellent noise immunity and a frequency response to 10 KHz. The stainless_x000D_ steel sensing pole is mounted flush to the plastic sensing face allowing greater_x000D_ ease of setting airgaps and eliminating snagging the pole with a moving target._x000D_ Two output types are available:_x000D_ The NPN OpenCollector Transistor Output unit provides a negative going current sinking_x000D_ output with the approach of a ferrous target and is current limited to 40 mA._x000D_ The Open Collector units are available with either an integrally potted_x000D_ 10, 25 or 50 foot 3-wire shielded cable with neoprene strain relief boot or a_x000D_ polarized 3-pin 5/8"-24 threaded connector for quick change versatility_x000D_ The Transistor Emitter-Follower Output unit provides positive going 5 V_x000D_ pulses with the approach of a ferrous target and can source 20 mA of load_x000D_ current._x000D_ The Emitter-Follower output unit is_x000D_ available in the 3-pin connector version only._x000D_ Super Sensitive_x000D_ Current sinking output OR current sourcing output_x000D_ Detects steel, sensing gears and other moving ferrous targets_x000D_ Built in pulse shaping amplifier_x000D_ Two output signal versions_x000D_ ” diameter stainless steel case_x000D_ Epoxy encapsulated sensor for oil & dirt_x000D_ Moisture resistant_x000D_ Cable & connector_x000D_ Note_x000D_ LMPC000 – Cable with a length of 10 feet_x000D_ LMPCCooo – 3 Pin connector_x000D_ Red Lion
