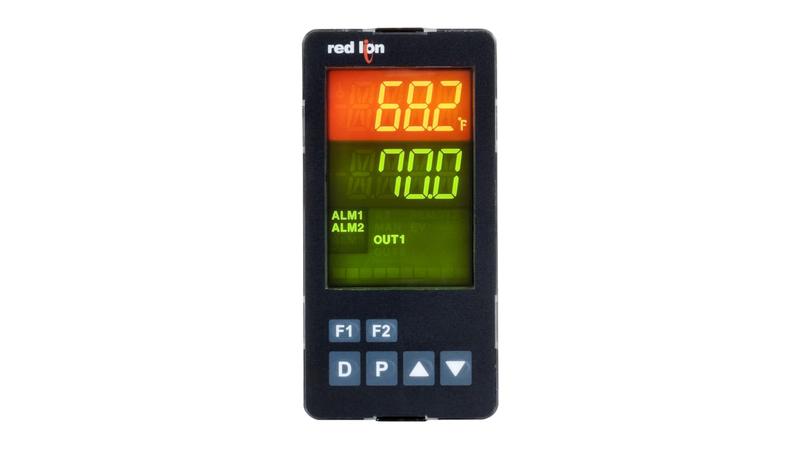

PXU20030 Red Lion PXU Panel Mount PID Temperature Controller, 48 x 95.8mm, 1 Output SSR, 100 → 240 V ac Supply Voltage

Red Lion Temperature Controller_x000D_ The Red Lion PXU series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 95.8mm (1/8 DIN)device. It provides a solid-state output. The device offers a configurable, 7 zone, tri-colour display with bar graphs and selectable unit annunciators. It can be populated in more than 150 configurations to address a wide range of control applications or even perform multi-zone PID control on a single display._x000D_ Features and Benefits_x000D_ Built-in USB programming port for configuration with Crimson programming software_x000D_ Customise outputs and communications capabilities using field installable option cards_x000D_ PID control with reduced overshoot_x000D_ Programmable dual-line display_x000D_ RS-485 serial communication (optional)_x000D_ Tri-colour display with 6 programmable zones_x000D_ Universal process, thermocouple, RTD, voltage, current and resistance input_x000D_ Up to 16 alarms with Boolean logic functionality_x000D_ Applications_x000D_ Factory automation_x000D_ Food and beverage_x000D_ Manufacturing_x000D_ Plastic extrusion_x000D_ Certifications_x000D_ CE certified_x000D_ Emission CISPR 11 class A_x000D_ EN 61010-1_x000D_ EN 61326-1 immunity to industrial locations_x000D_ NEMA 4X/IP65 sealed front bezel_x000D_ RoHS compliant_x000D_ UL approved_x000D_ UL listed: File #E179259
