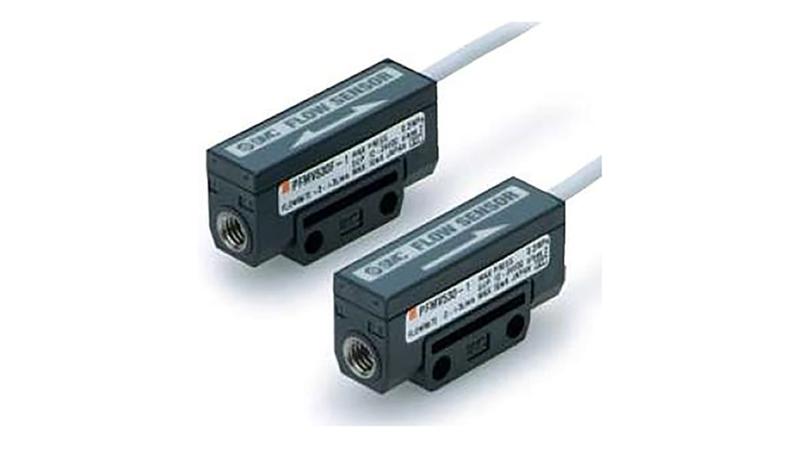

PFMV510-1 SMC PFMV Series Suction Pressure Sensor for Dry Air, Gas, 0 L/min Min, 1 L/min Max

SMC Flow Sensor_x000D_ The SMC PFMV series flow sensor sense flow rate of 0L/min to 1L/min. It has a rapid response time of fewer than 5 milliseconds. Designed for space-saving, this sensor can be mounted in tight locations as well. This flow sensor that sends an output over a wide range._x000D_ Note:_x000D_ The PFMV3 voltage monitor for the PFMV5 series offers easy connection and removal of wiring, covers a full range of sensors. The dual colour display allows for visual confirmation of the current condition._x000D_ Features and Benefits_x000D_ Pipe diameter range is 4mm_x000D_ Connection type is one-touch fitting_x000D_ Maximum operating pressure is 500kPa_x000D_ Maximum operating temperature is 50°C_x000D_ Precise suction confirmation of very small work-pieces_x000D_ Voltage output: from 1V to 5V, analogue, and non-linear_x000D_ Reduced piping space (M5 female threads port)_x000D_ Small and light_x000D_ Low flow rate range_x000D_ Accuracy ±5% F. S. or less_x000D_ Repeatability ±2% F. S. or less_x000D_ Applications_x000D_ Suction check of very small work pieces_x000D_ Easier leakage test_x000D_ Easier check of the work piece presence_x000D_ Certifications_x000D_ IP40 rated_x000D_ CE certified
