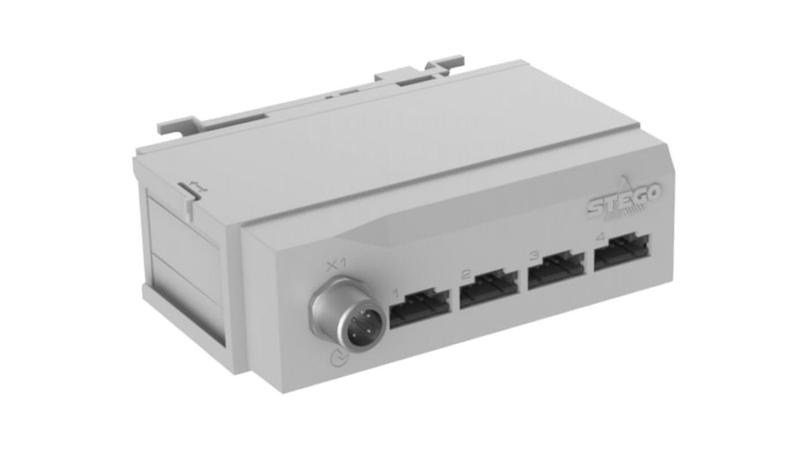

07100.2-00 STEGO SHC 071 Series Sensor Hub

Sensor Hub, IO-LINK DC 24v, Digital IO-Link interface - for 1 to 4 I²C sensors_x000D_ The STEGO IO-Link Sensor Hub SHC 071 records measuring data of up to four external, non IO-Link STEGO sensors on process level and transmits data via an IO-Link Master to a superior control and monitoring level: edge computer, cloud, PLC, etc. Standard IO-Link sensors, on the other hand, connect to one IO-Link Master slot each. By use of the sensor hub, up to four external sensors can be connected, but they only connect to one IO-Link Master slot and thus have a positive savings effect on the slot capacities of the IO-Link Master device._x000D_ Sensor connection 4 slots with strain relief for up to 4 STEGO sensors1_x000D_ IO-Link connection M12 round plug connector, IEC 61076-2-101, 4-pin, A-coded_x000D_ Electrical protection Reverse-polarity, short circuit, overvoltage protection_x000D_ Mounting clip for 35 mm DIN rail, EN 60715 and screw mounting (M5)_x000D_ Casing plastic according to UL94 V-0, light grey_x000D_ Operating/Storage temperature -40 to +80 °C (-40 to +176 °F) / -40 to +85 °C (-40 to +185 °F)_x000D_ Operating/Storage humidity max. 90 % RH (non-condensing)_x000D_ Operating altitude ≤ 4,000 m above sea level_x000D_ Protection type/Protection class IP40 / III (SELV)
