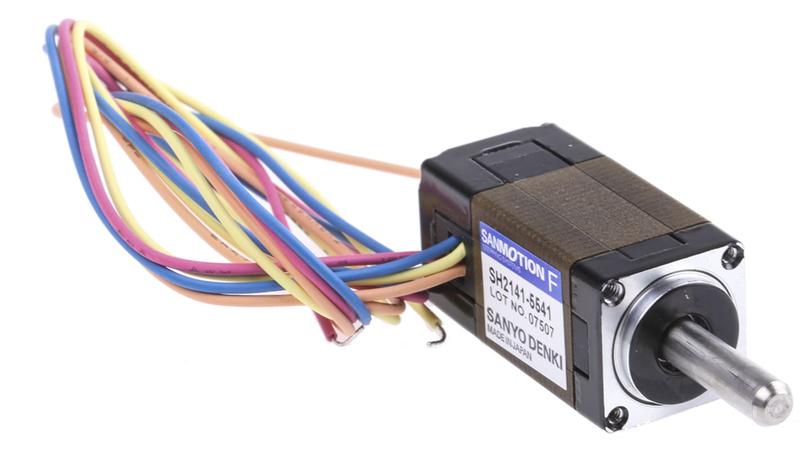

SH2141-5541 Sanyo Denki SH21 Series Hybrid, Single Shaft Stepper Motor, 24 V, Bipolar, 6.5mNm Torque, 1.8°, 4mm Shaft

Sanyo Denki SH2141 Series Bipolar Stepper Motor_x000D_ Sanyo Denki Sanmotion bipolar stepper motors are a small 2 phase motor which provides high torque values. Designed to be used in space-restricted applications, for example as an electric gripper or electric cylinder_x000D_ Available in single shaft (829-3534) and double shaft (829-3538) options_x000D_ 1.8° step resolution_x000D_ 24V DC supply voltage_x000D_ Sanyo Denki Stepper Motor, 300mA Current Rating, 1.8° Step Angle - SANMOTION SH21 Series - SH2141-5541_x000D_ When you need precise positioning and speed control over mechanical moving parts, choose this stepper motor from Sanyo Denki. Its small step angle of 1.8° means it's suitable for high-precision applications, such as robotics. As this stepper motor is a hybrid type, it offers a high torque-to-size ratio and output speed for smooth and accurate operation._x000D_ Features & Benefits_x000D_ • Compact dimensions of 31.5 (L) x 14 (W) x 14mm (H) means it will take up minimal space_x000D_ • Low current rating of 300mA for use in low-power applications_x000D_ • Four-wire configuration makes installation straightforward_x000D_ Applications_x000D_ • 3D printers_x000D_ • Camera platforms_x000D_ • CNC_x000D_ What are the different types of stepper motor?_x000D_ Common types of stepper motor include the unipolar, bipolar and hybrid varieties. In a unipolar motor, current flows in one direction only, leading to simpler construction and operation but lower holding torque. Bipolar motors can send current in two directions. Hybrid stepper motors are a combination of variable reluctance and permanent magnet-type motors, which allows for high-precision techniques such as micro-stepping and half-stepping._x000D_ Sanyo Denki Stepper Motor
