| Unlocking mechanism | Turn |
| Print motif | Arrow symbol |
| Lighting type | None |
| Contact type | 2 breakers |
| Factory colour | Red |
| Connection | Screws |
| Type | 2 forced NC contacts, galvanically isolated |
| Functions | latch |
| Durability | (Tambient 20 ºC) 50000 cycles |
| Electrical lifespan | (Contactor b. rated load) 1 x 106 operating cycles |
| Switching voltage | 250 |
| Switching current (max.) | 16 |
| Min. temperature | -25 |
| Max. temperature | +55 |
| IP rating | IP65 |
| Type | SIL22_QRUV_118308 |
| Content | 1 |
| Contact resistance | |
| Switching capacity | (acc. to IEC/EN 60947-5-1: Usage category DC13 Q600) AC15 = 250 V/3 A/440 V/1.6 A, DC13 = 440 V/0.12 A/ 250 V/0.2 A/ 125 V/0.4 A/ 60 V/1 A/ 24 V/2 |
| Bounce duration | < 9 |
| Connection | Screw connections for 2 x 2.5 mm2 |
| Max. permanent current | 16 |
| Temperature range | -25 to +55 ºC |

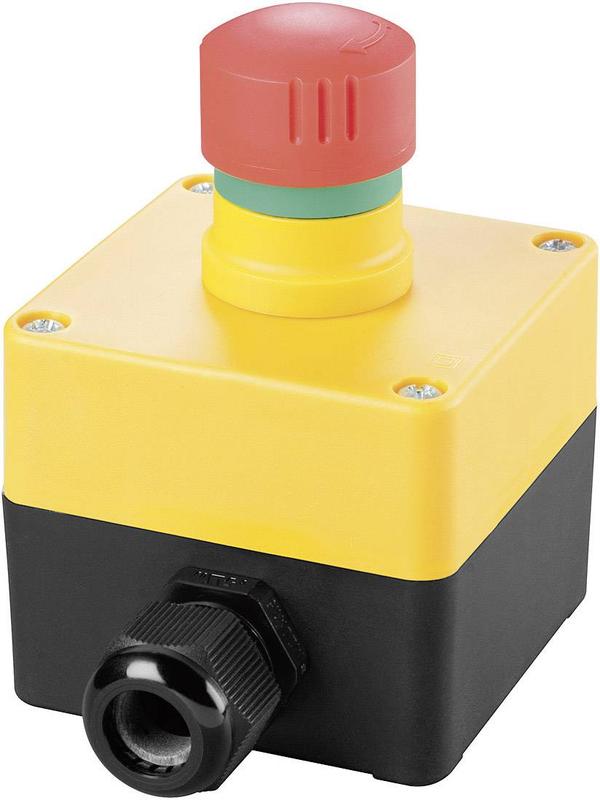

| Product type | Kill switch |
