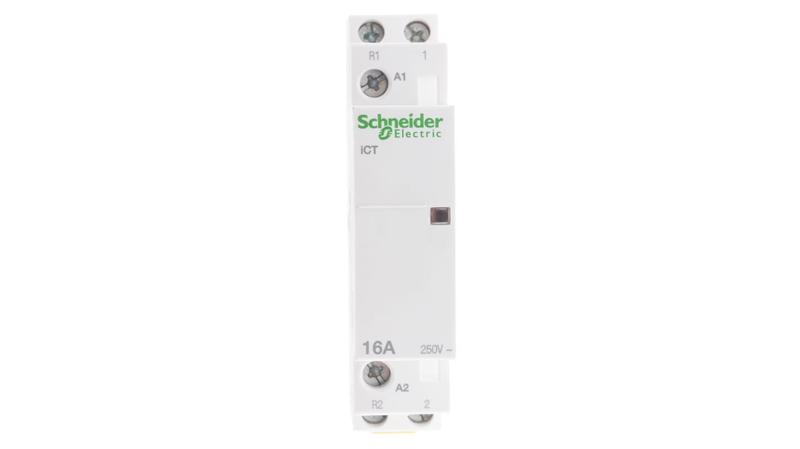

A9C22015 Schneider Electric Acti 9 iCT Contactor, 12 V ac Coil, 2 Pole, 16 A, 1NO + 1NC

Schneider Electric Acti 9 iCT Contactors_x000D_ ACTi 9 iCT Contactors from Schneider Electric provides power switching in single phase 3 phase loads. TeSys GC is a range of contactors that are safe, simple to use, and easy to install. The devices are compact in size and suitable for use in a wide variety of applications._x000D_ Features and Benefits_x000D_ • Built-in auxiliary contacts for added switching capability_x000D_ • Screw connections: IP20 finger-safe terminals with both North American and International terminal markings_x000D_ • Can be panel mounted with screws or DIN Rail mounted_x000D_ • Impulse relay function_x000D_ • Day-night function_x000D_ • Class-2 insulation: continuous safety for operators and unqualified personnel_x000D_ What is the difference between AC-7a and AC-7b when choosing a iCT contactor?_x000D_ These utilization catagories determine what load the contactors are switching:_x000D_ AC-7a are for slightly inductive loads for household appliances for example mixers and blenders_x000D_ AC-7b are for motor-loads for house hold appliances such as fans and central vacuums_x000D_ Do spacers have to be fitted between the iCT range of Contactors?_x000D_ If several contactors are fitted onto an DIN Rail then spacers should be used after every second contactor. The reason for this is that with multiple contactors side by side there can be a very high build of heat causing the devices to reach above their operating temperature. The coils themselves are 100% rated so can be on for 24 hours a day and the heat needs to be dissipated, therefore a spacer is required
