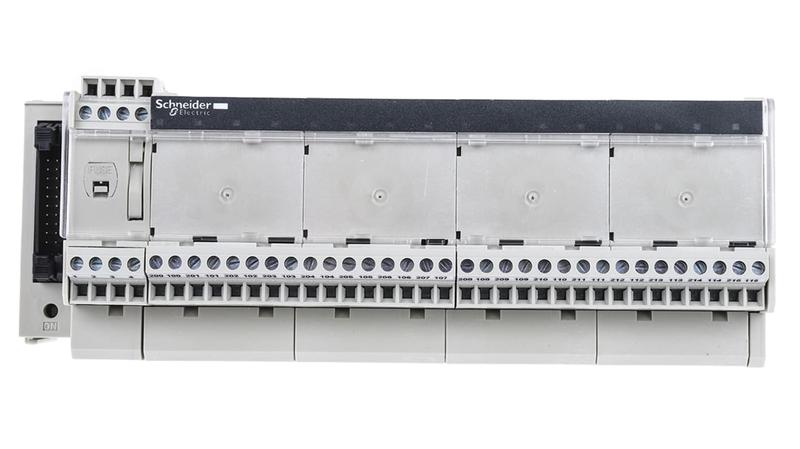

ABE7R16S210 MODULE TELEFAST 2

Schneider Electric Electromechanical Output Relay - Sub-Base, ABE7R16S210_x000D_ Schneider's electromechanical output relay sub-base forms part of their Advantys Telefast ABE7 range of products, a range of products that are pre-wired systems that enables connection and adaption of control signals of PLC cards equipped with HE10 connectors. The ABE7R16S210 features 16 channels and 2 terminals per channel._x000D_ Features & Benefits_x000D_ • Volt-free polarity distribution_x000D_ • The sub-base fixing modes are by clips on 35mm symmetrical DIN rail and by screws on a solid plate with a fixing kit_x000D_ • Maximum immunity to microbreaks is <=5 ms_x000D_ • Features a rated supply voltage of 24V DC (PLC end)_x000D_ • The width of the sub-base is 206mm_x000D_ • Mechanically durable for 20000000_x000D_ Schneider Electric Telefast 2 Pre-Wired System_x000D_ The Telefast 2 system of pre-cabling is composed of modules connected to the PLC by means of a multicore cable equipped with HE 10 connectors . The Telefast 2 interfaces make it possible to simplify the operation of wiring and thus limiting errors.
