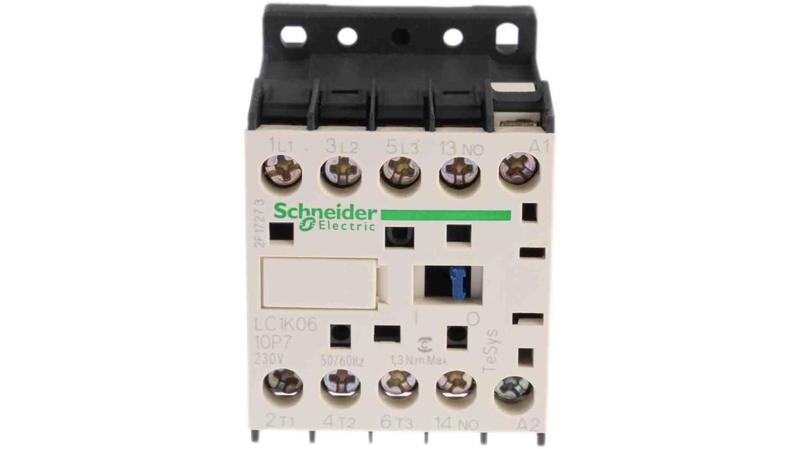

LC1K0610P7 Schneider Electric TeSys K LC1K Contactor, 230 V ac Coil, 3 Pole, 6 A, 2.2 kW, 3NO

Schneider Electric LC1K TeSys K Miniature Contactors_x000D_ TeSys K Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and for inductive motor applications. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range, either AC or DC, to have the same physical size and panel footprint for convenience._x000D_ Features and Benefits_x000D_ • Built-in auxiliary contacts for added switching capability_x000D_ • Screw connections: IP20 finger-safe terminals with both North American and International terminal markings_x000D_ • Can be panel mounted with screws or DIN Rail mounted_x000D_ • Easily installed accessories_x000D_ • Instantaneous auxiliary contact_x000D_ • Flexible control circuit to suit a wide range of applications_x000D_ • High-fault short circuit current ratings provide the flexibility to select any component_x000D_ What does the utilisation category AC1 and AC3 mean for the TeSys contactors?_x000D_ Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions._x000D_ AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution._x000D_ AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running._x000D_ Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units._x000D_ Are the TeSys K contactors suitable for applications in AC4 usage?_x000D_ The LC1K series is suitable up to a maximum of 440 V ac in category AC4._x000D_ Is the TeSys K range a double break pole type contactor?_x000D_ Yes the TeSys K range uses linear translation movement that provides double breaking of the poles._x000D_ LC1K0610P7 Schneider Electric LC1K TeSys K Miniature Contactor._x000D_ The LC1K0610P7 is a miniature 3 pole contactor featuring a 230 V ac operating coil, an AC-3 full load current of 6 A and a normally open auxiliary contact._x000D_ TeSys K._x000D_ Motor Control applications._x000D_ AC 4, AC-3 category._x000D_ Ue Rated voltage Power circuit: 690 V AC 50/60 Hz, Signalling circuit: <= 690 V AC 50/60 Hz._x000D_ Rated current 6 A at <= 440 V AC AC-3 for power circuit._x000D_ Circuit Voltage 230 V ac (AV at 50/60 Hz circuit)._x000D_ 1 NO auxiliary contact._x000D_ Overvoltage category III._x000D_ Rated breaking capacity 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947._x000D_ Plate and Rail mounting._x000D_ IP2x conforming to VDE 0106._x000D_ Screw Clamp Terminals._x000D_ Weight 0.18 kg._x000D_ Fire resistant V1 conforming to UL 94._x000D_ Approvals_x000D_ UL, CSA_x000D_ Standards_x000D_ BS 5424 IEC 60947 NF C 63-110 VDE 0660
