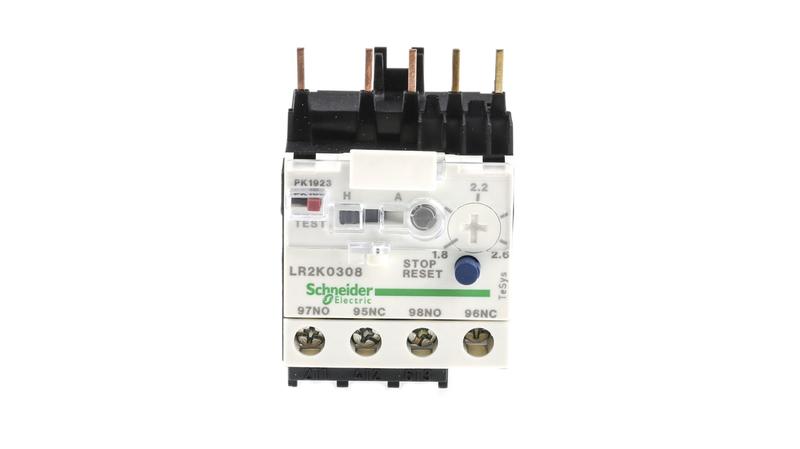

LR2K0308 Schneider Electric Thermal Overload Relay - 1NO + 1NC, 1.8 → 2.6 A F.L.C, 2.6 A Contact Rating, 100 W, 250 V dc,

Schneider Electric Mini Thermal Overload Relays - LR2-K Range_x000D_ Schneider Electrics K thermal overload relays are adjustable from 0.11 to 11.5 A, they have been predominantly designed for use in applications that require motor protection._x000D_ This range of mini thermal overload relays feature compensated and phase failure sensitivity, the range also offers manual and automatic reset. Each overload relay has 3-poles and screw clamp terminals._x000D_ Features & Benefits_x000D_ • Commonly referred to by the range short name - LR2K_x000D_ • Easy maintenance checks, check the tightening of cables through conducting thermographic testing and checking the mechanical operation of the product through manually operating the test, reset and stop buttons_x000D_ • Direct mounting under a contactor is achievable_x000D_ • Standards - IEC 947, BS4941, VDE 0660, NFC63-650_x000D_ • Standards - CSA, UL, DEMKO, NEMKO, SEMKO, FIMKO, PTB_x000D_ Applications of a Contactor and Control Overload Relay_x000D_ • The majority of the time is to protect a motor_x000D_ • To detect both overload conditions and fault conditions to then announce trip command for a protective device_x000D_ • To deactivate a device whenever it pulls high current_x000D_ • Sometimes developed into microprocessor systems and solid-state electronics_x000D_ Schneider Electric TeSys K LR2K0308 - Differential Thermal Overload Relay_x000D_ • The thermal protection adjustment range is 1.8...2.6 A_x000D_ • The network frequency is < = 400 Hz_x000D_ • Compatible with LP4K, LC1K, LC7K and LP1K_x000D_ • Thermal overload class 10A which conforms to IEC 60947-4-1_x000D_ • Mounting support can be achieved under the contactor, plate - but with specific categories and rail with specific categories_x000D_ • Yellow trip indicator_x000D_ • The auxiliary contact composition is 1 NO + 1 NC_x000D_ Compatibe With?_x000D_ LP4K, LC1K, LC7K, LP1K.
