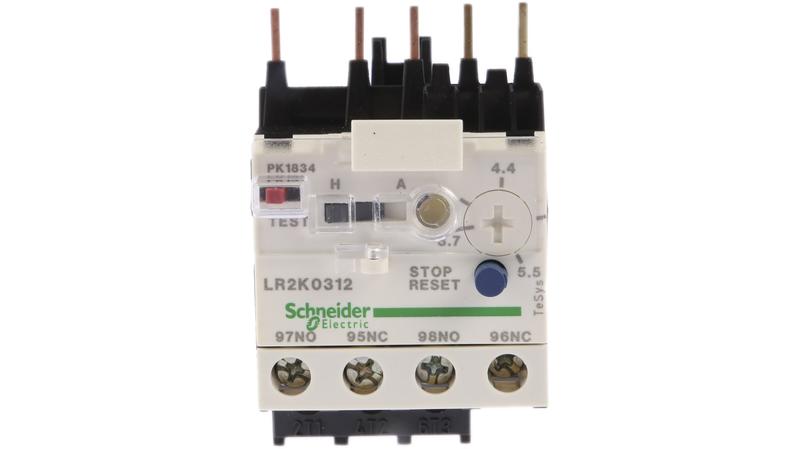

LR2K0312 Schneider Electric Thermal Overload Relay - 1NO + 1NC, 3.7 → 5.5 A F.L.C, 5.5 A Contact Rating, 100 W, 250 V dc,

Schneider Electric Mini Thermal Overload Relays - LR2-K Range_x000D_ Schneider Electrics K thermal overload relays are adjustable from 0.11 to 11.5 A, they have been predominantly designed for use in applications that require motor protection._x000D_ This range of mini thermal overload relays feature compensated and phase failure sensitivity, the range also offers manual and automatic reset. Each overload relay has 3-poles and screw clamp terminals._x000D_ Features & Benefits_x000D_ • Commonly referred to by the range short name - LR2K_x000D_ • Easy maintenance checks, check the tightening of cables through conducting thermographic testing and checking the mechanical operation of the product through manually operating the test, reset and stop buttons_x000D_ • Direct mounting under a contactor is achievable_x000D_ • Standards - IEC 947, BS4941, VDE 0660, NFC63-650_x000D_ • Standards - CSA, UL, DEMKO, NEMKO, SEMKO, FIMKO, PTB_x000D_ Applications of a Contactor and Control Overload Relay_x000D_ • The majority of the time is to protect a motor_x000D_ • To detect both overload conditions and fault conditions to then announce trip command for a protective device_x000D_ • To deactivate a device whenever it pulls high current_x000D_ • Sometimes developed into microprocessor systems and solid-state electronics_x000D_ Schneider Electric TeSys K LR2K0312 - Differential Thermal Overload Relay_x000D_ The thermal protection adjustment range is 3.7...5.5 A._x000D_ Compatible with LP4K, LC1K, LC7K and LP1K._x000D_ The network frequency is < = 400 Hz._x000D_ Thermal overload class 10A which conforms to IEC 60947-4-1._x000D_ Mounting support can be achieved under the contactor, plate - but with specific categories and rail with specific categories._x000D_ Screw clamp terminals._x000D_ Yellow trip indicator._x000D_ The auxiliary contact composition is 1 NO + 1 NC._x000D_ Height 58 mm._x000D_ Width 45 mm._x000D_ Depth 65 mm._x000D_ Net weight 0.145 kg.
